A/C Low Pressure Switch Connector

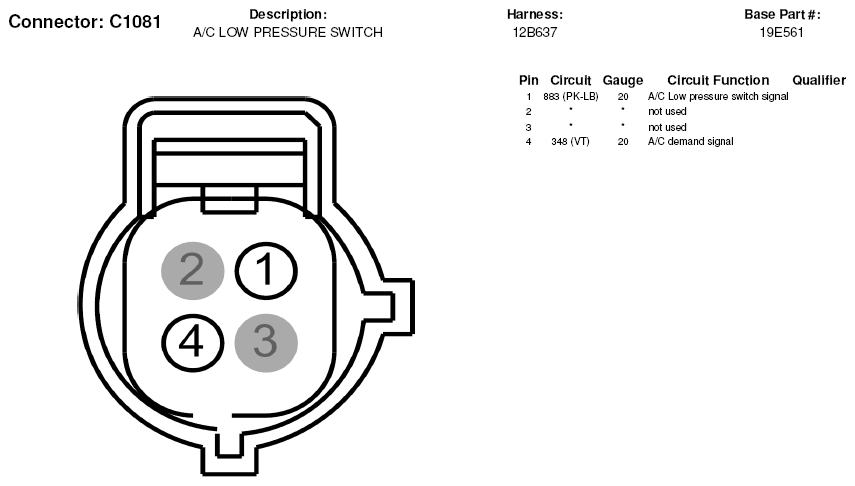

Fig 1: A/C Low Pressure Switch Connector End View (C1081)
G05179265Courtesy of FORD MOTOR CO.
