Battery Connectors

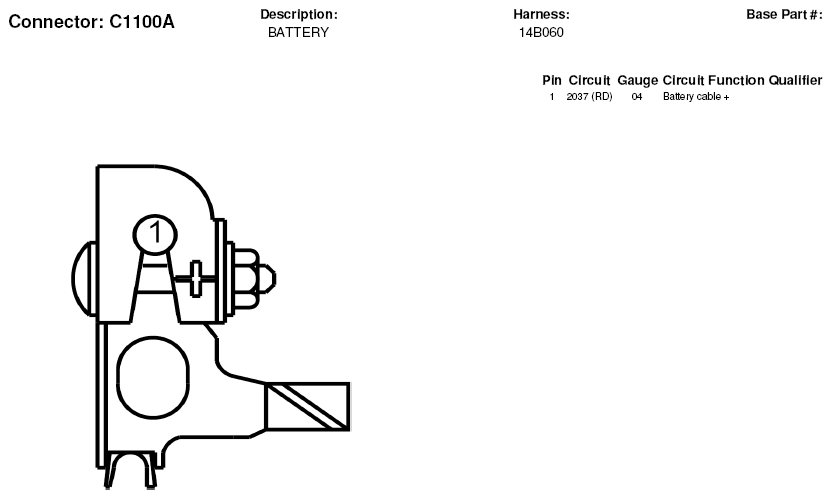

Fig 1: Battery Connector End View (C1100A)
G05179266Courtesy of FORD MOTOR CO.

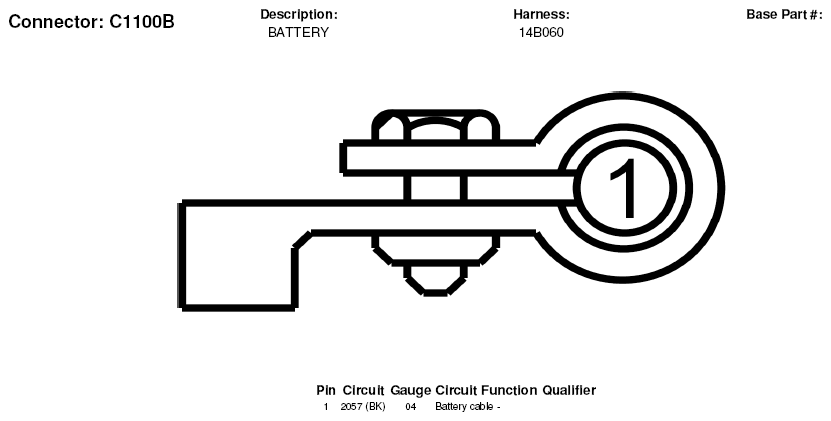

Fig 2: Battery Connector End View (C1100B)
G05179267Courtesy of FORD MOTOR CO.
