Climate Control Assembly Connectors

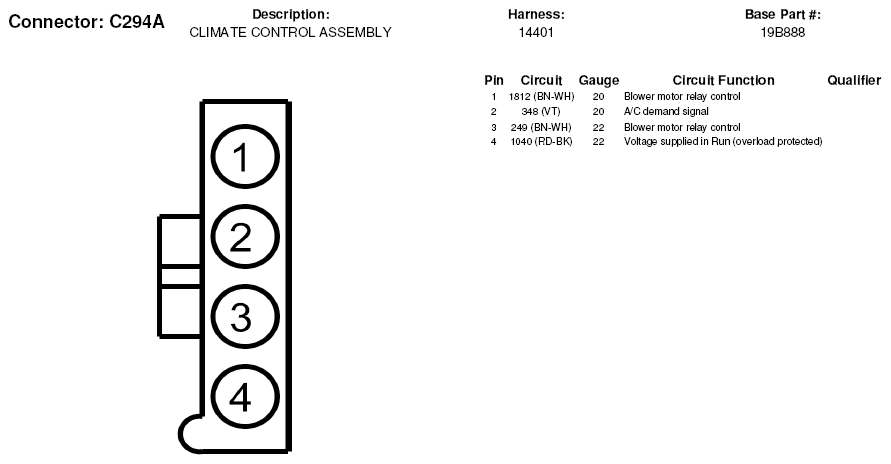

Fig 1: Climate Control Assembly Connector End View (C294A)

Courtesy of FORD MOTOR CO.

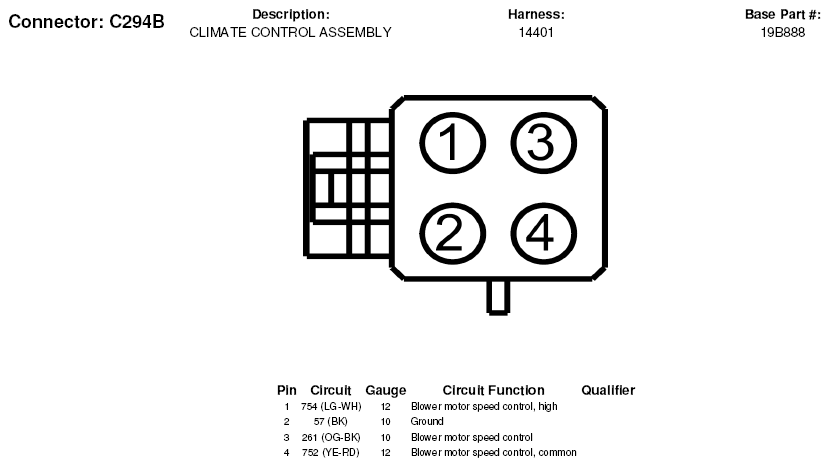

Fig 2: Climate Control Assembly Connector End View (C294B)

Courtesy of FORD MOTOR CO.

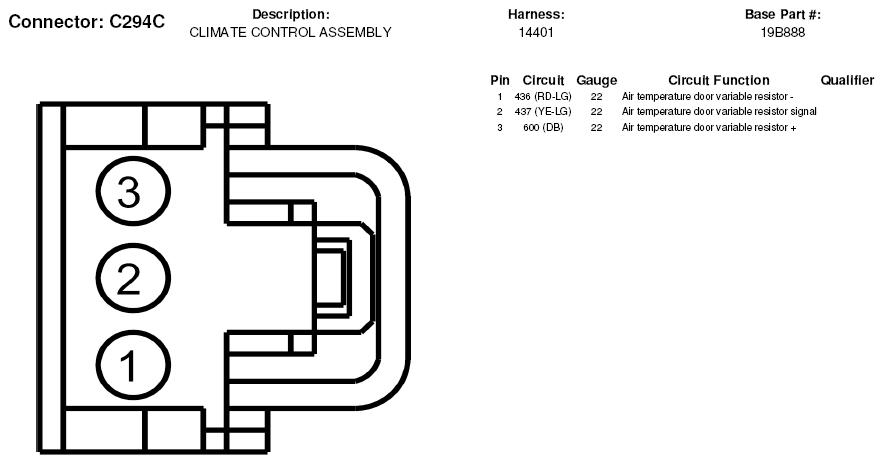

Fig 3: Climate Control Assembly Connector End View (C294C)

Courtesy of FORD MOTOR CO.

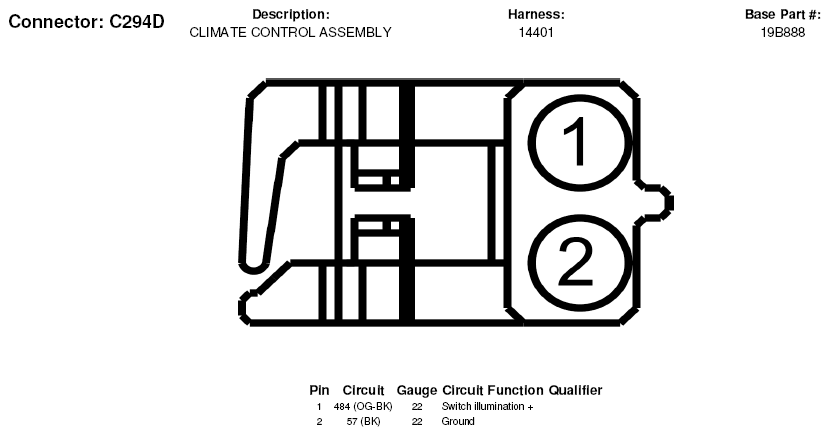

Fig 4: Climate Control Assembly Connector End View (C294D)

Courtesy of FORD MOTOR CO.
