Driver Door Module Connectors

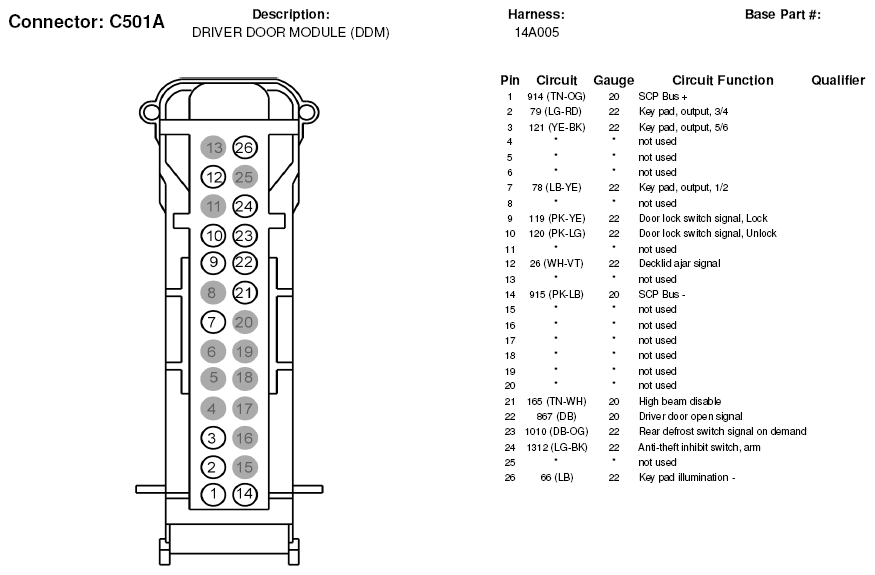

Fig 1: Driver Door Module Connector End View (C501A)

Courtesy of FORD MOTOR CO.

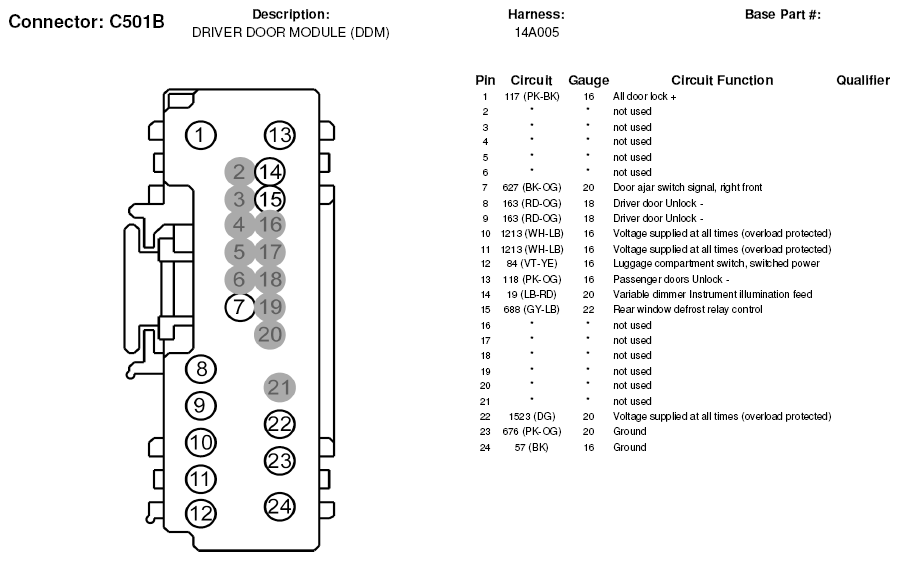

Fig 2: Driver Door Module Connector End View (C501B)

Courtesy of FORD MOTOR CO.

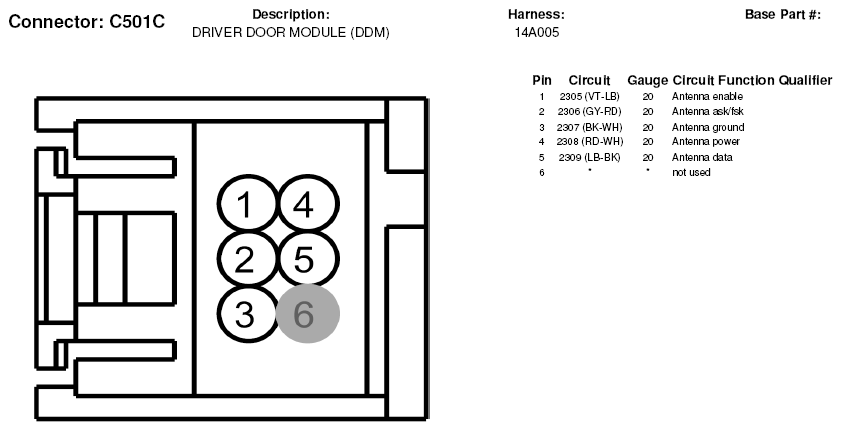

Fig 3: Driver Door Module Connector End View (C501C)

Courtesy of FORD MOTOR CO.
