Electronic Throttle Control Module Connectors

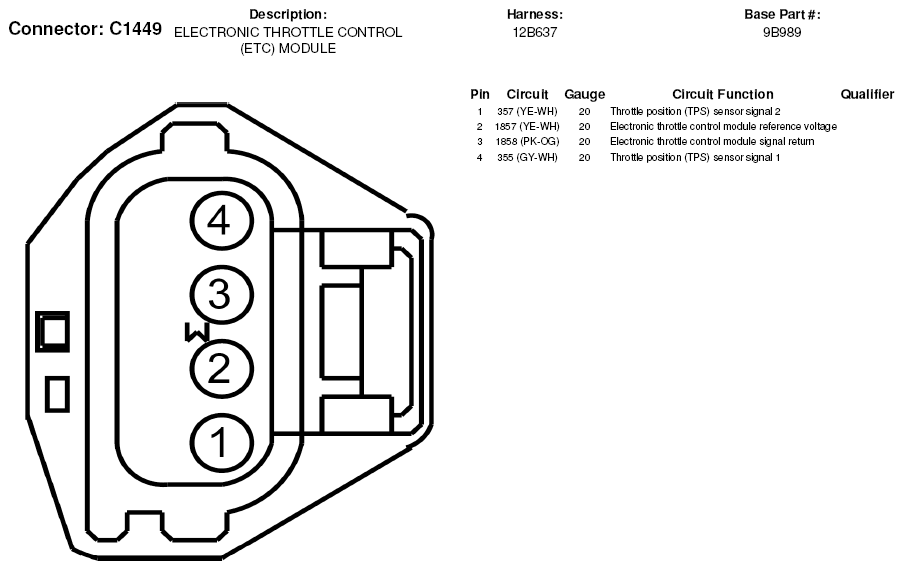

Fig 1: Electronic Throttle Control Module Connector End View (C1449)
G05179290Courtesy of FORD MOTOR CO.
