Engine Compartment Perimeter Disarm Connector
Engine Compartment Perimeter Disarm Connector

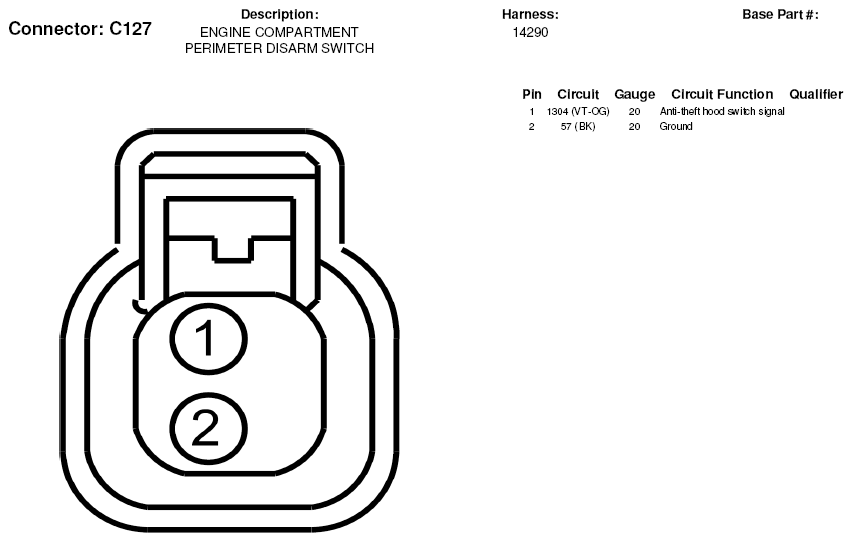

Fig 1: Engine Compartment Perimeter Disarm Connector End View (C127)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
