Fire Suppression System Module Connectors

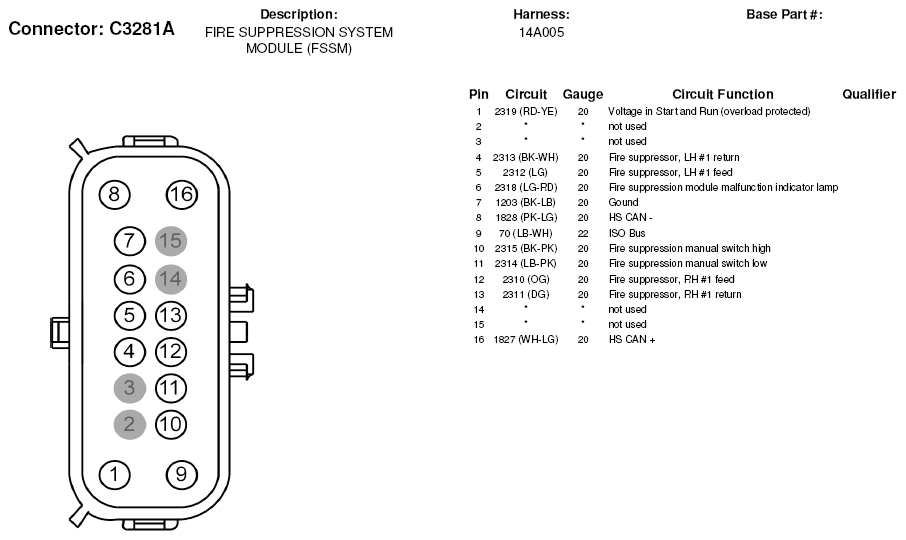

Fig 1: Fire Suppression System Module Connector End View (C3281A)

Courtesy of FORD MOTOR CO.

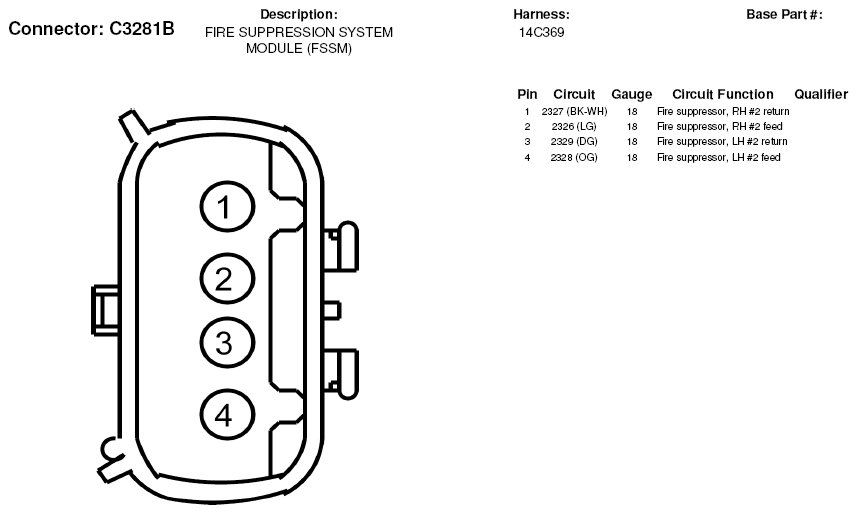

Fig 2: Fire Suppression System Module Connector End View (C3281B)

Courtesy of FORD MOTOR CO.
