Front Blower Motor Speed Connector

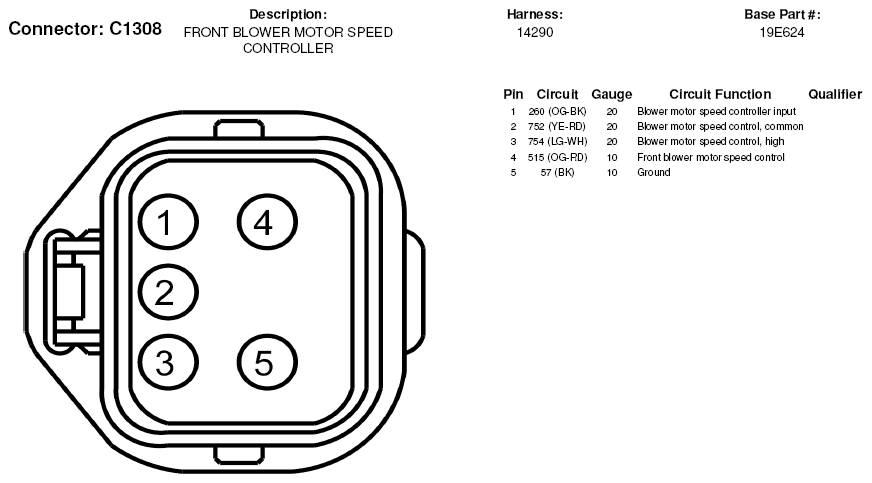

Fig 1: Front Blower Motor Speed Connector End View (C1308)
G05179283Courtesy of FORD MOTOR CO.
