Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector Views
›
Fuel Injector Connectors
Fuel Injector Connectors
Fig 1: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.
Fig 2: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.
Fig 3: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.
Fig 4: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.
Fig 5: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.

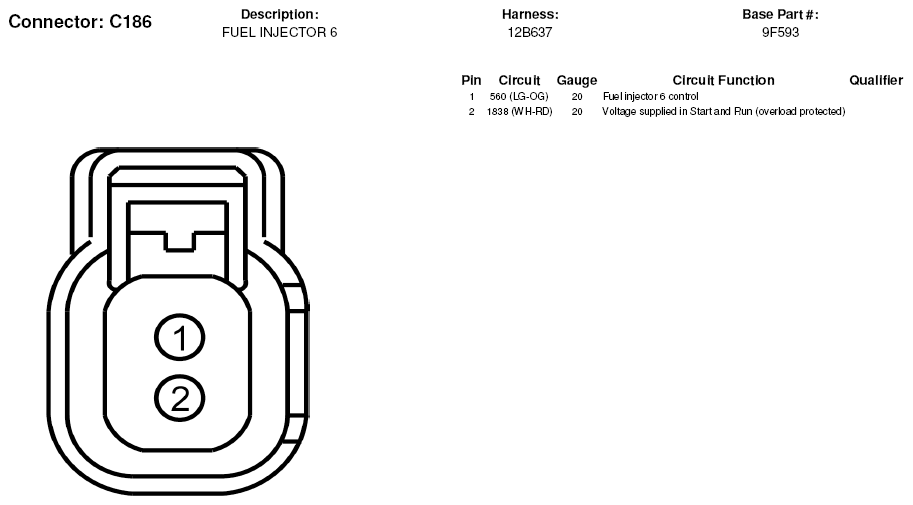

Fig 6: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.
Fig 7: Fuel Injector 7 Connector End View (C187)
Courtesy of FORD MOTOR CO.

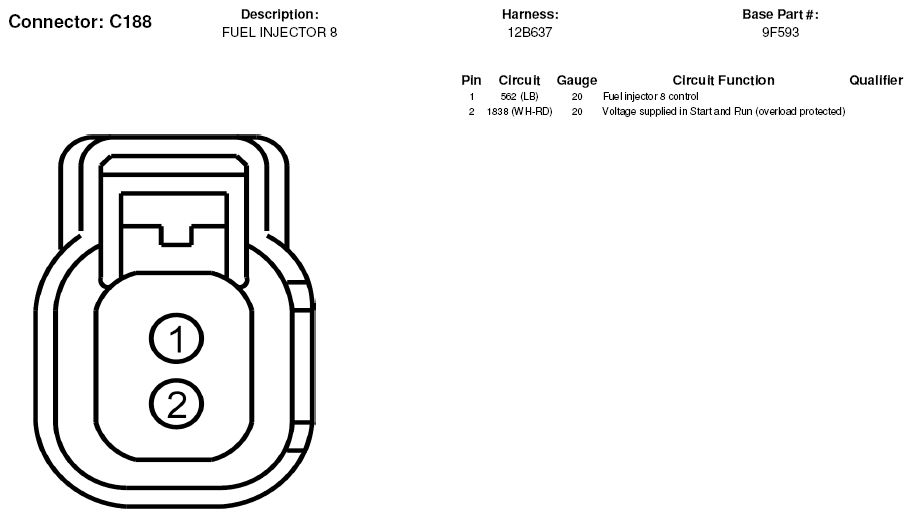

Fig 8: Fuel Injector 8 Connector End View (C188)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
