Keyless Entry Keypad Connector
Keyless Entry Keypad Connector

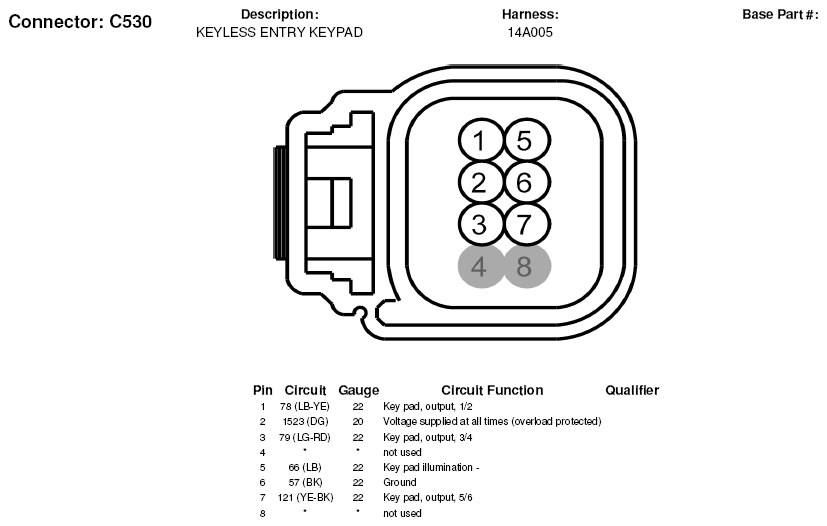

Fig 1: Keyless Entry Keypad Connector End View (C530)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
