Main Light Switch Connectors

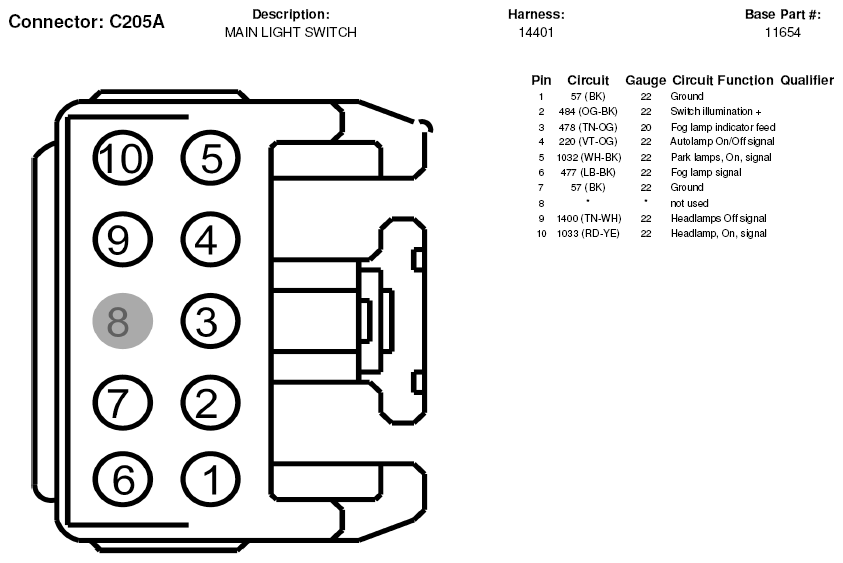

Fig 1: Main Light Switch Connector End View (C205A)
G05179104Courtesy of FORD MOTOR CO.

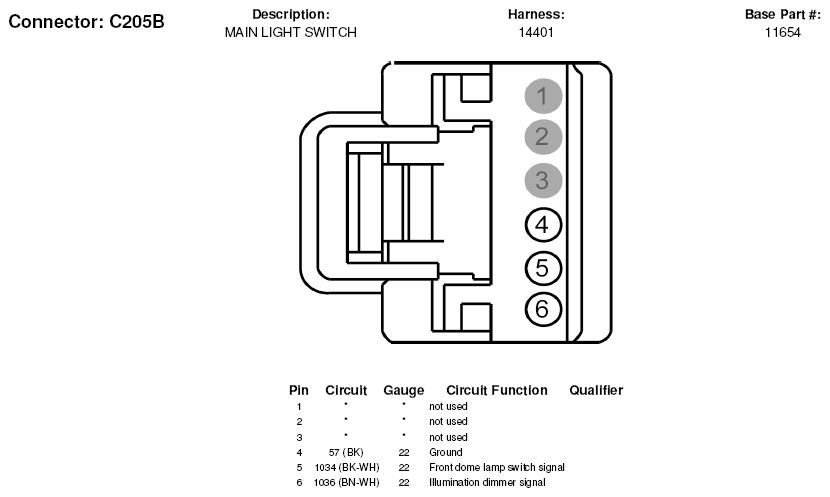

Fig 2: Main Light Switch Connector End View (C205B)
G05179105Courtesy of FORD MOTOR CO.
