Multifuction Switch Connector
Multifuction Switch Connector

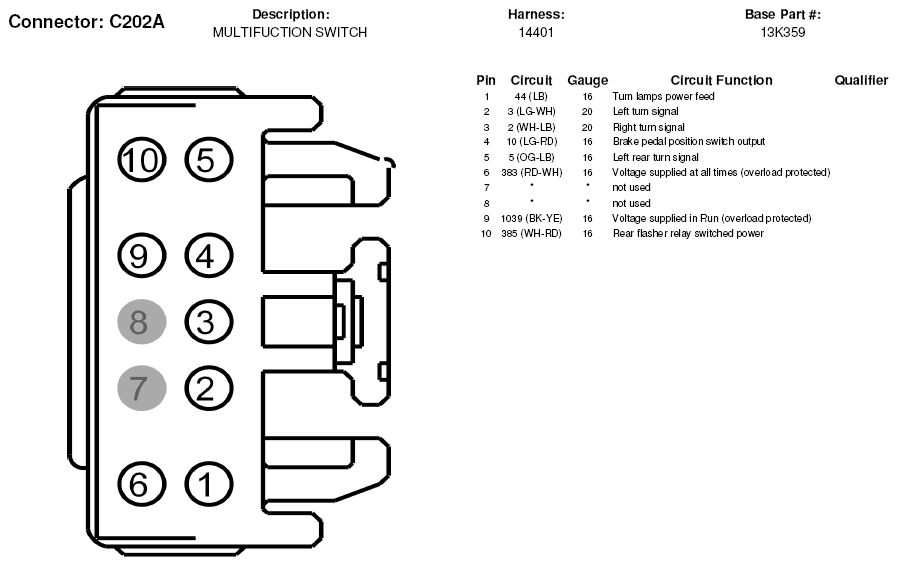

Fig 1: Multifuction Switch Connector End View (C202A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
