Multifunction Switch Connectors

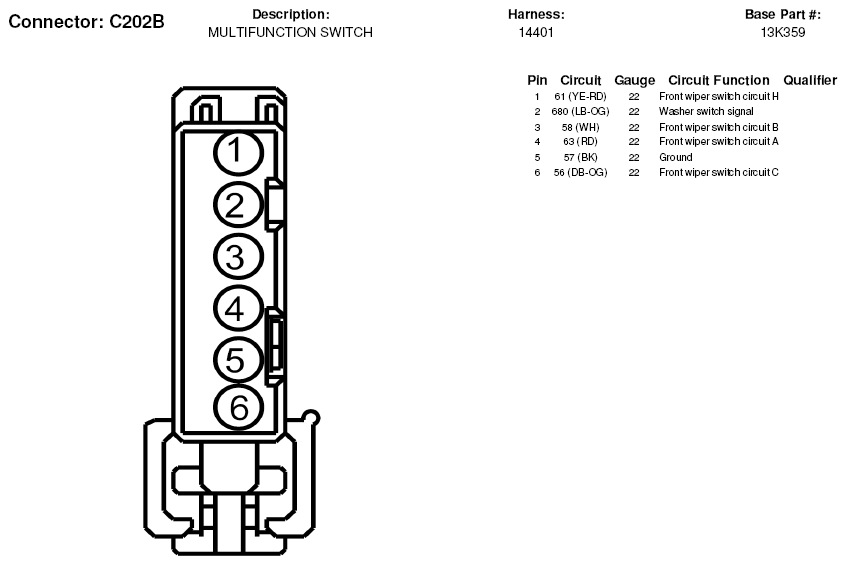

Fig 1: Multifunction Switch Connector End View (C202B)
G05179101Courtesy of FORD MOTOR CO.

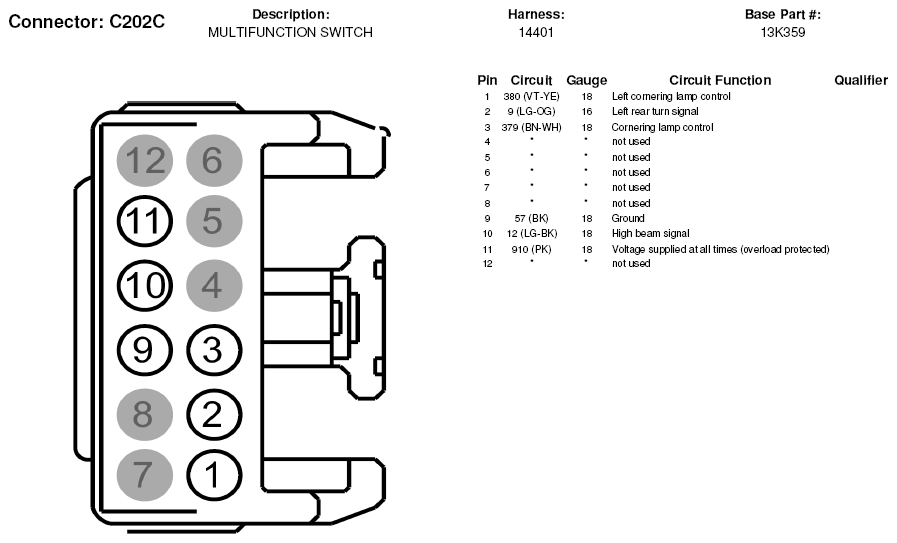

Fig 2: Multifunction Switch Connector End View (C202C)
G05179102Courtesy of FORD MOTOR CO.
