Output Shaft Speed Sensor Connector

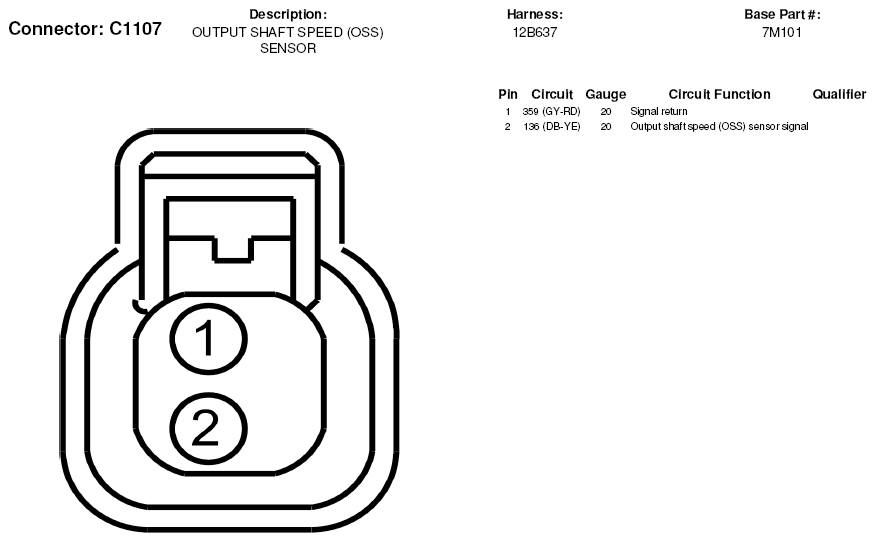

Fig 1: Output Shaft Speed Sensor Connector End View (C1107)
G05179268Courtesy of FORD MOTOR CO.
