Passenger Air Bag Module Connectors

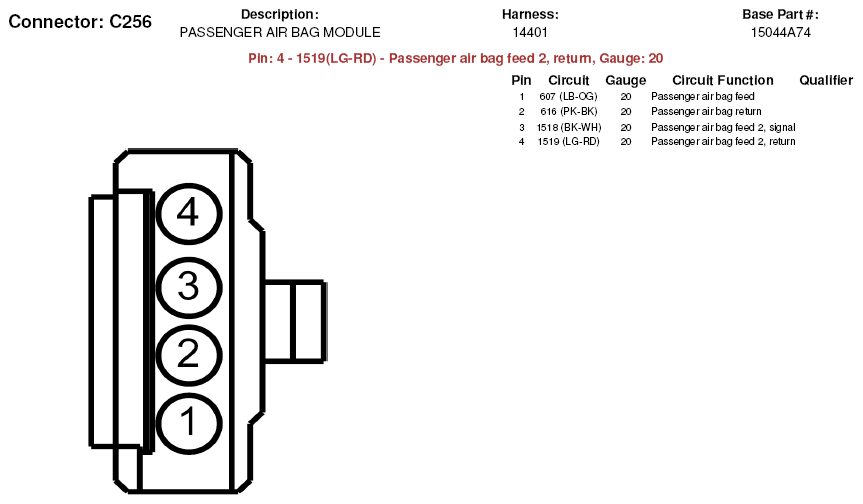

Fig 1: Passenger Air Bag Module Connector End View (C256)
G05179127Courtesy of FORD MOTOR CO.
