Power Window Switch Connector

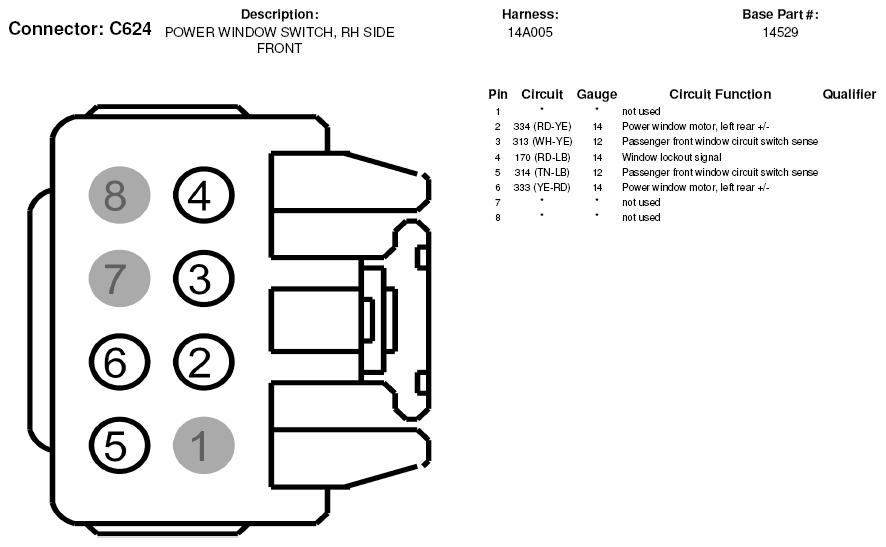

Fig 1: Power Window Switch Connector End View (C624)
G05179229Courtesy of FORD MOTOR CO.
