Home › Lincoln › 2007 › Navigator RWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Rear Window Defrost Switch Connectors

Rear Window Defrost Switch Connectors

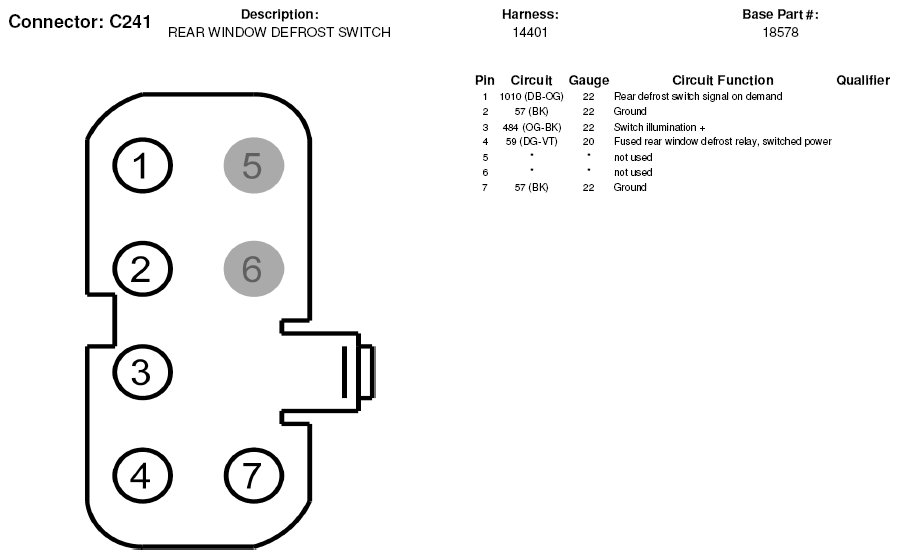

Fig 1: Rear Window Defrost Switch Connector End View (C241)
G05179120Courtesy of FORD MOTOR CO.
