Right Front Strobe Assembly Connector

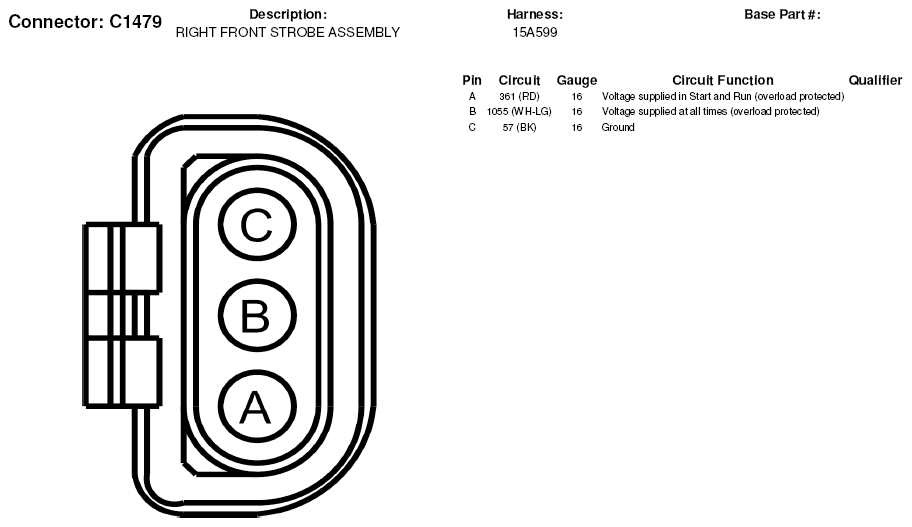

Fig 1: Right Front Strobe Assembly Connector End View (C1479)
G05179296Courtesy of FORD MOTOR CO.
