Roof Opening Panel Unit Connector

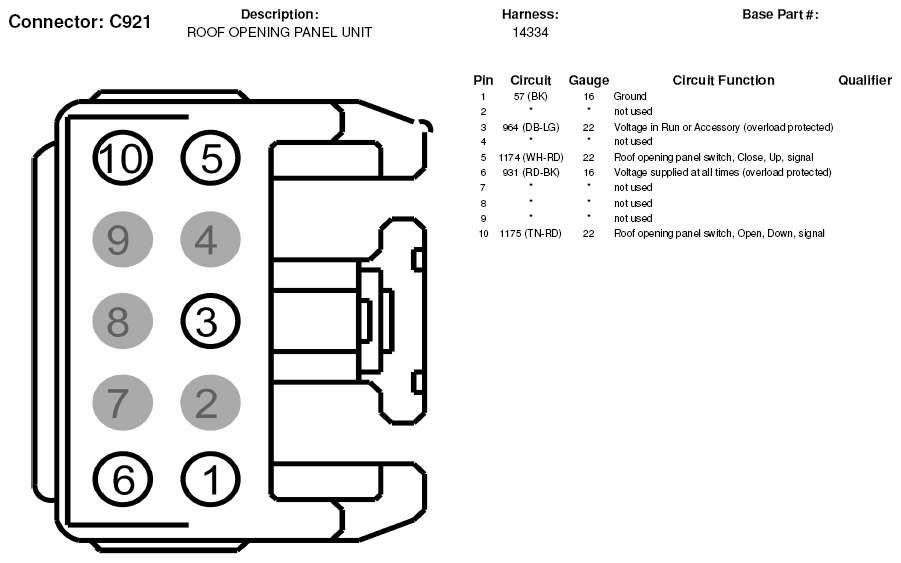

Fig 1: Roof Opening Panel Unit Connector End View (C921)
G05179249Courtesy of FORD MOTOR CO.
