Traction Control Switch Connector
Traction Control Switch Connector

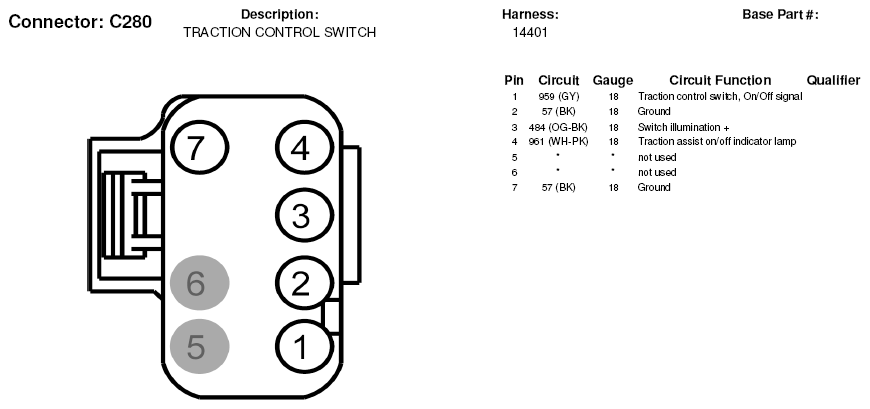

Fig 1: Traction Control Switch Connector End View (C280)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
