Home › Lincoln › 2007 › Navigator RWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Windshield Wiper Motor Connector

Windshield Wiper Motor Connector

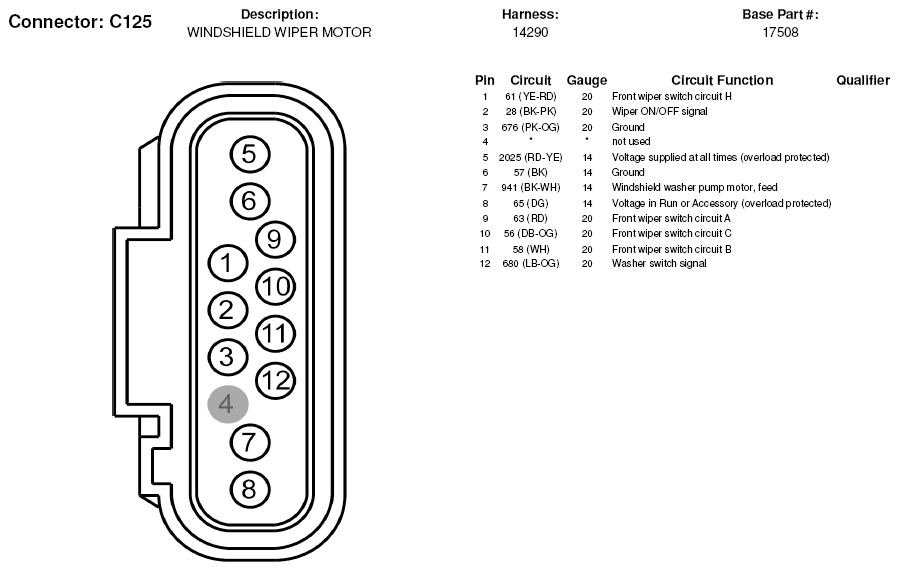

Fig 1: Windshield Wiper Motor Connector End View (C125)
G05179060Courtesy of FORD MOTOR CO.
