Block Heater: Notes

Material

Item	Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)	WSS-M97B51-A1

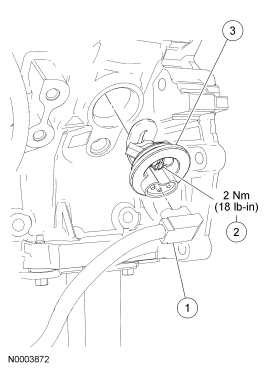

Fig 1: Exploded View Of Block Heater - 4.6L, 5.4L and 6.8L With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A199	Block heater electrical connector
2	-	Block heater retaining screw (part of 6A051)
3	6A051	Block heater
