Removal And Installation: Radiator: Notes

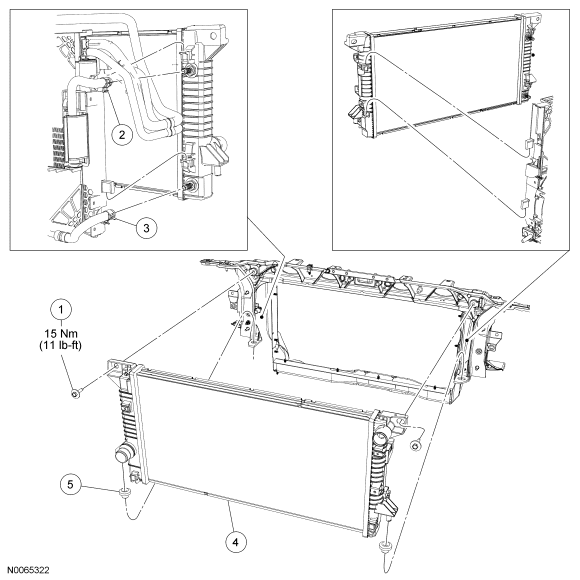

Fig 1: Exploded View Of Radiator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503924	Radiator support bolt (2 required)
2	7F113	Transmission fluid cooler-to-radiator upper hose
3	7B028	Transmission fluid cooler-to-radiator lower hose
4	8005	Radiator
5	8B204	Radiator insulator (2 required)
