Strobe/ Light Bar Control Connectors

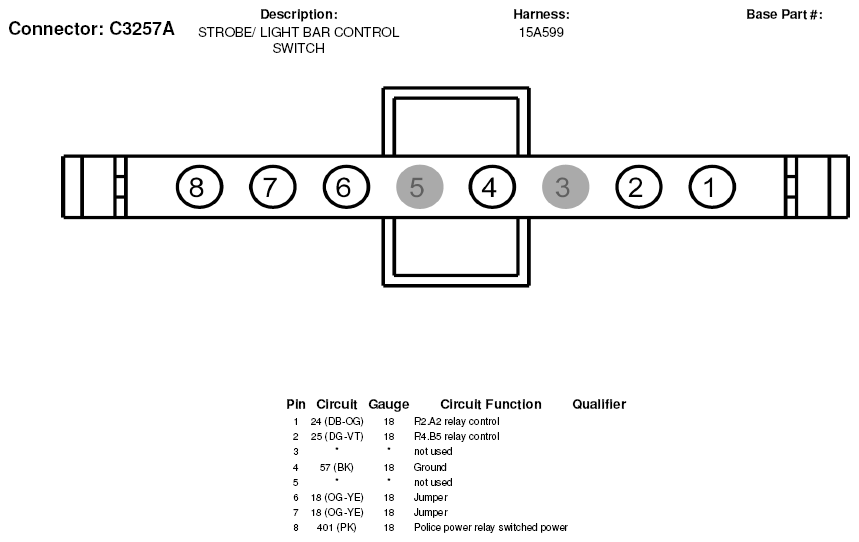

Fig 1: Strobe/ Light Bar Control Connector End View (C3257A)

Courtesy of FORD MOTOR CO.

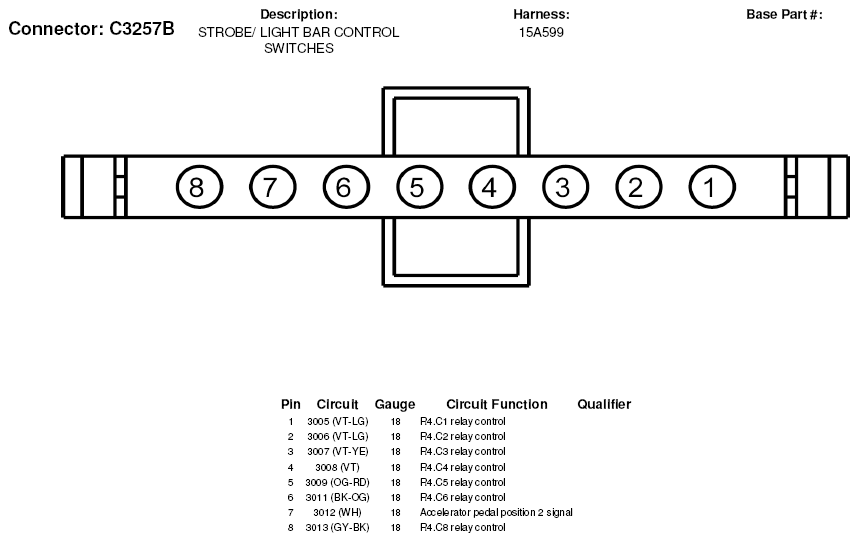

Fig 2: Strobe/ Light Bar Control Connector End View (C3257B)

Courtesy of FORD MOTOR CO.
