Anti-Lock Brake System (ABS) Module: Notes

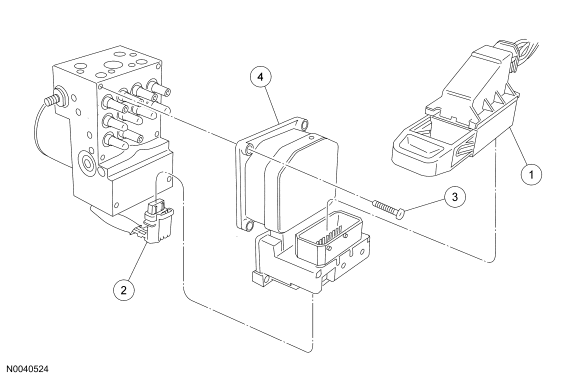

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Anti-lock brake system (ABS) module electrical connector
2	-	Hydraulic control unit (HCU) pump motor electrical connector
3	2C331	ABS module screw (6 required)
4	2C219	ABS module
