Accessory Protocol Interface Module Connector

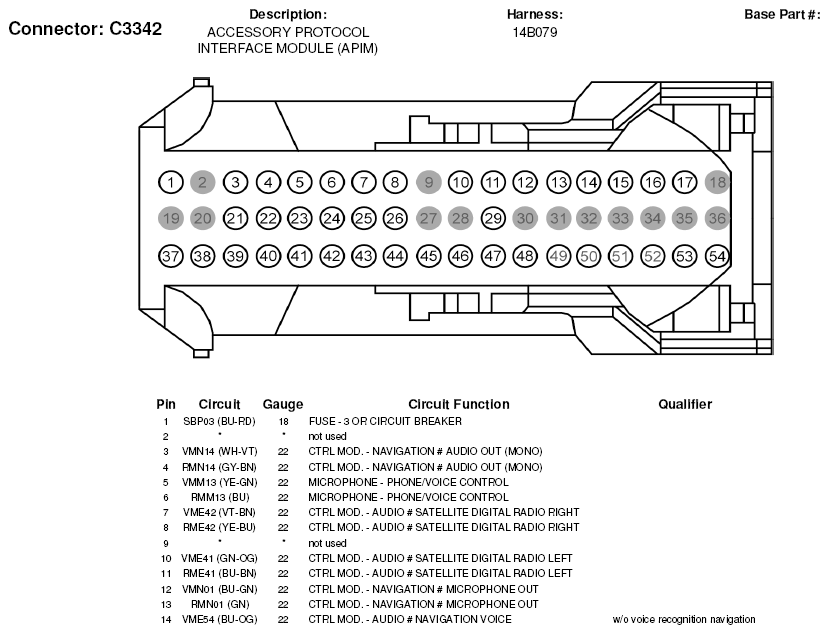

Fig 1: Accessory Protocol Interface Module (1 Of 2) Connector End View (C3342) (1 Of 2)

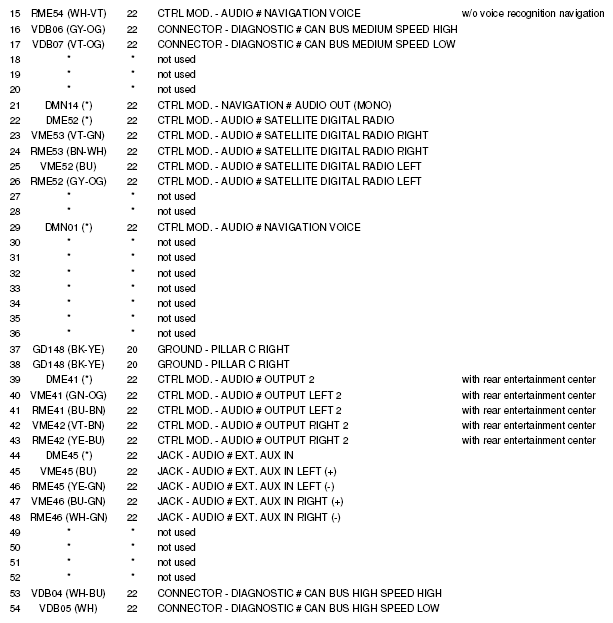

Fig 2: Accessory Protocol Interface Module (2 Of 2) Connector End View (C3342) (2 Of 2)
