Seat - Front: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

NOTE: Passenger seat shown, driver seat similar.

NOTE: The seat track-to-floor bolts must be tightened in the sequence described in this procedure.

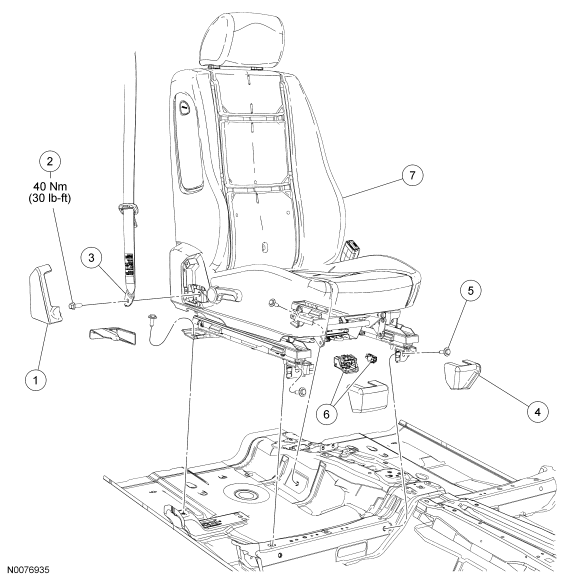

Fig 1: Exploded View Of Front Seat With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	621A44	Safety belt retractor belt anchor bolt cover (part of 62184) (passenger only)
2	W505274	Safety belt retractor belt anchor bolt (passenger only)
3	-	Safety belt retractor belt anchor (part of 611B08) (passenger only)
4	-	Seat-to-floor bolt cover (4 required)
5	W707858	Seat-to-floor bolt (4 required)
6	-	Electrical connectors (part of 14A698)
7	-	Front seat assembly
