Accessory Protocol Interface Module (1 Of 2) Connector
Accessory Protocol Interface Module (1 Of 2) Connector

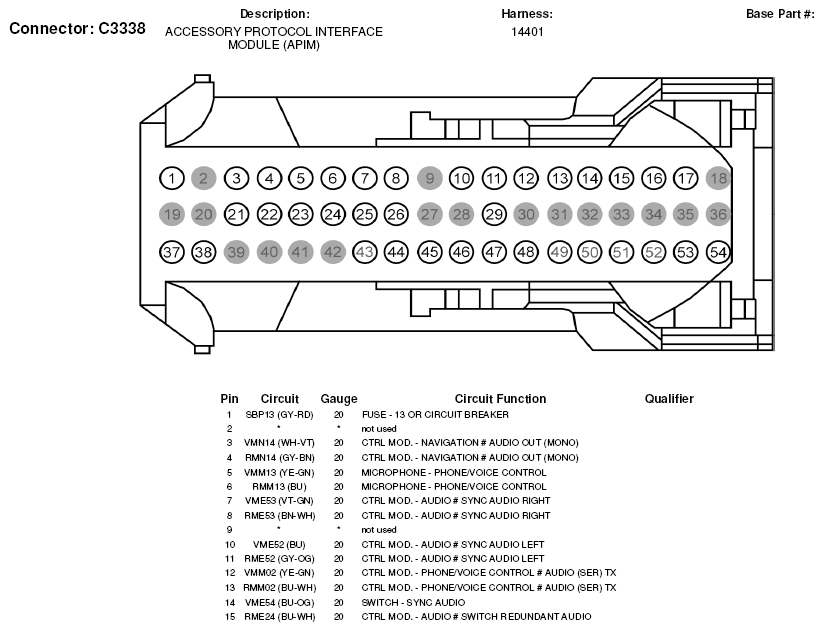

Fig 1: Accessory Protocol Interface Module (1 Of 2) Connector End View (C3338) (1 Of 2)
