Ambient Lighting Module Connector

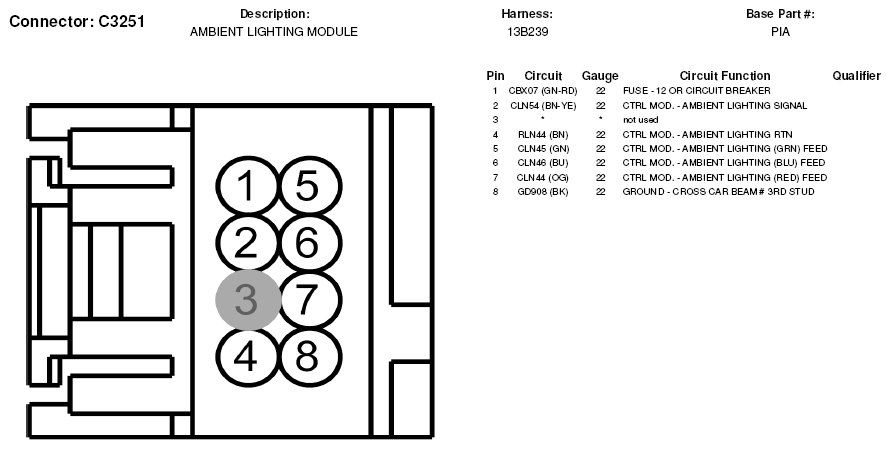

Fig 1: Ambient Lighting Module Connector End View (C3251)
G05602697
