Driver Side Air Curtain Module Connector
Driver Side Air Curtain Module Connector

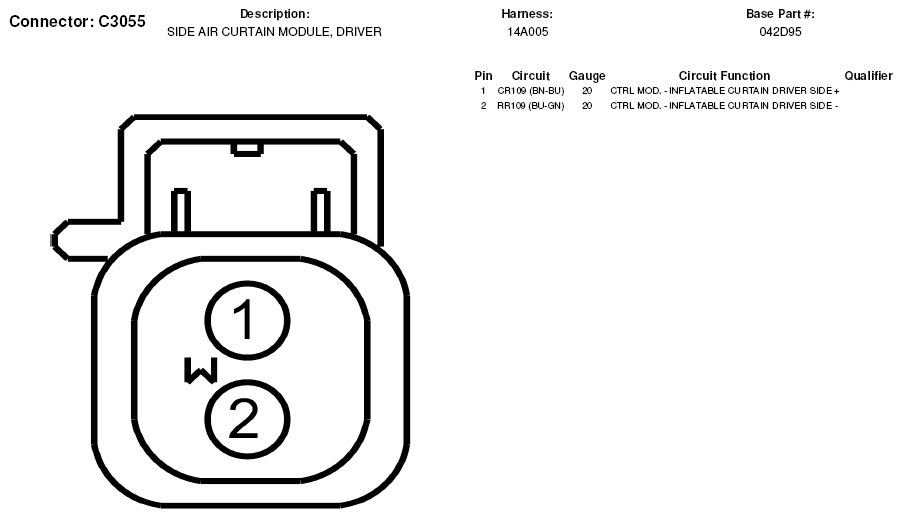

Fig 1: Driver Side Air Curtain Module Connector End View (C3055)
