Dual Climate Controlled Seat Module Connector

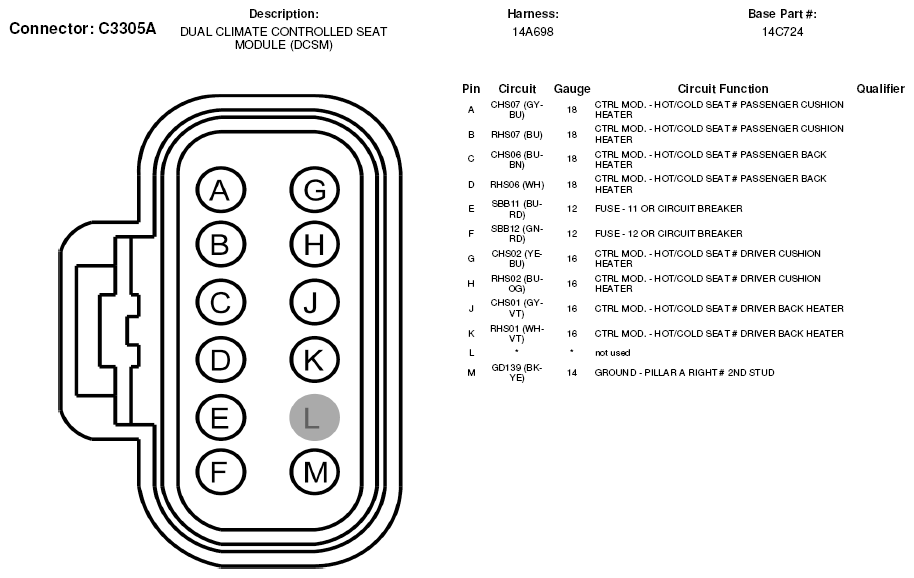

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3305A)

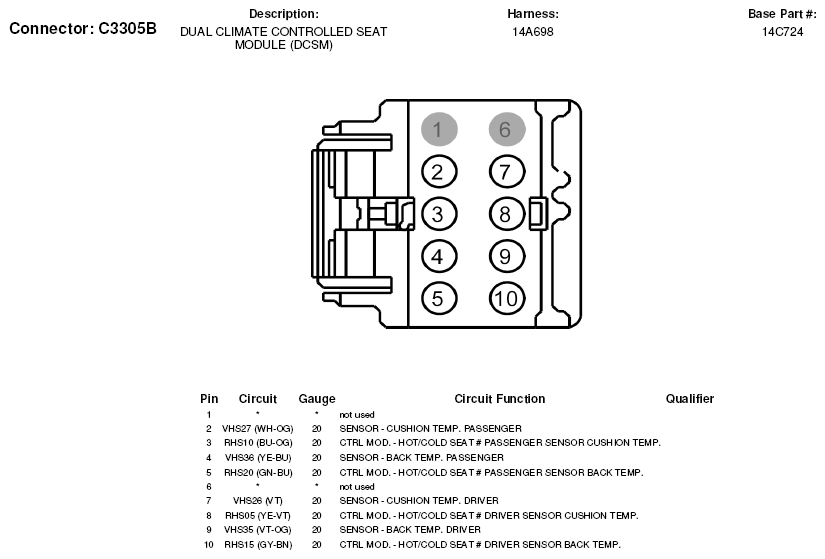

Fig 2: Dual Climate Controlled Seat Module Connector End View (C3305B)

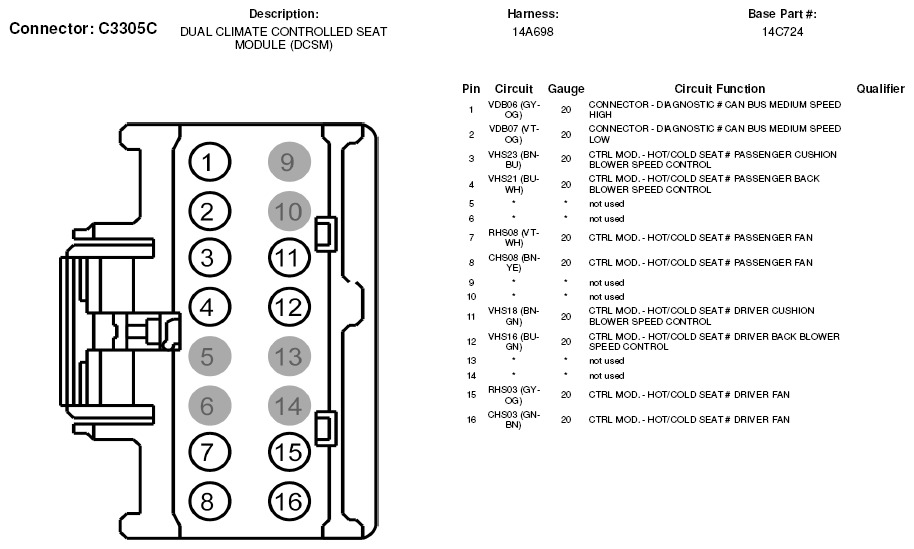

Fig 3: Dual Climate Controlled Seat Module Connector End View (C3305C)
