Four Wheel Drive Control Module Connector

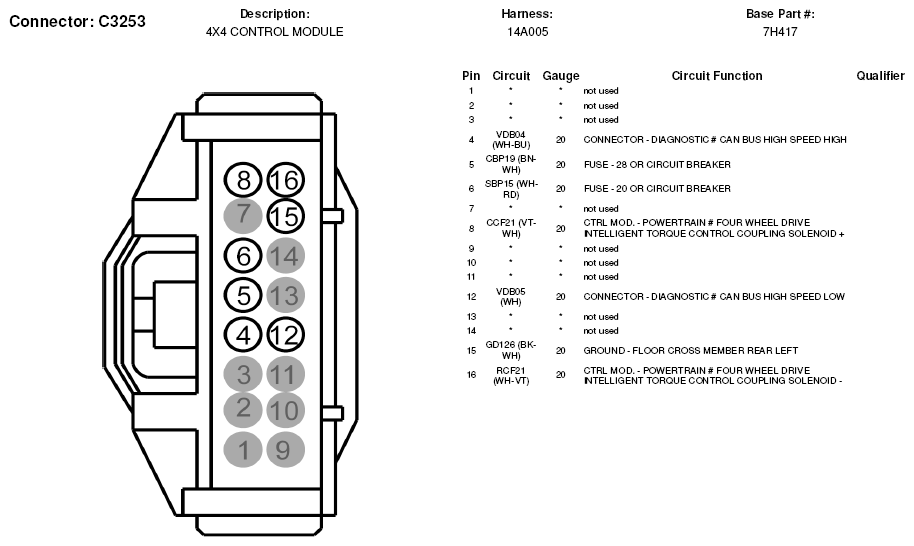

Fig 1: Four Wheel Drive Control Module Connector End View (C3253)
G05602698
