Front Blower Motor Resistor Assembly Connector

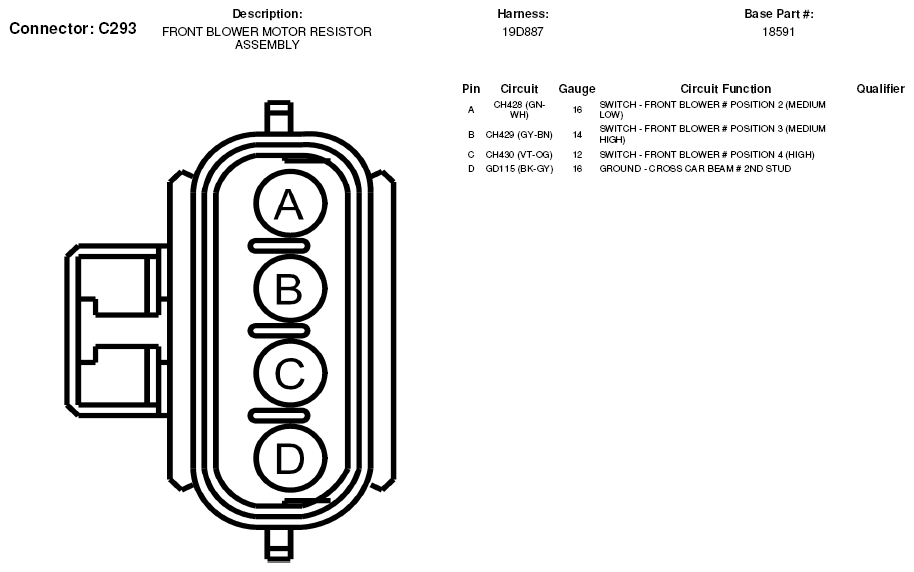

Fig 1: Front Blower Motor Resistor Assembly Connector End View (C293)
G05602461
