Front Interior Lamp Connector

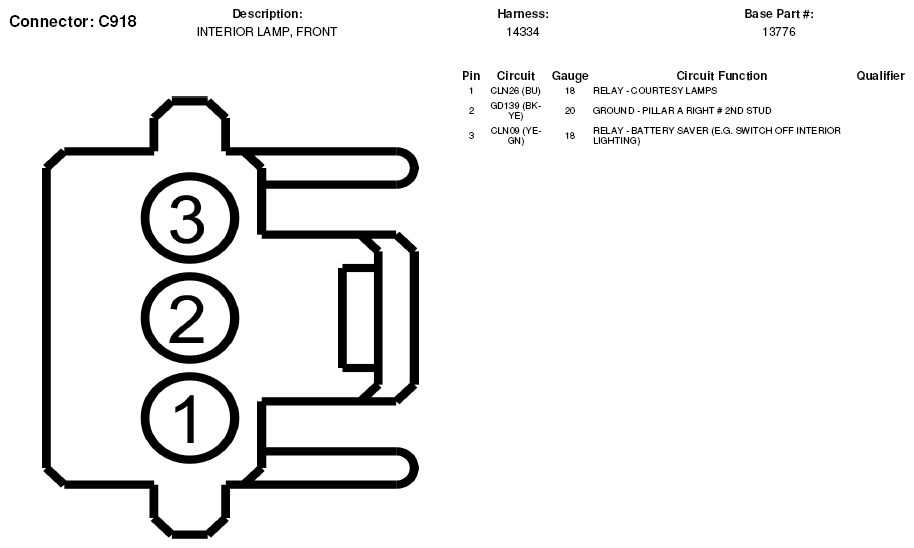

Fig 1: Front Interior Lamp Connector End View (C918)

G05602573

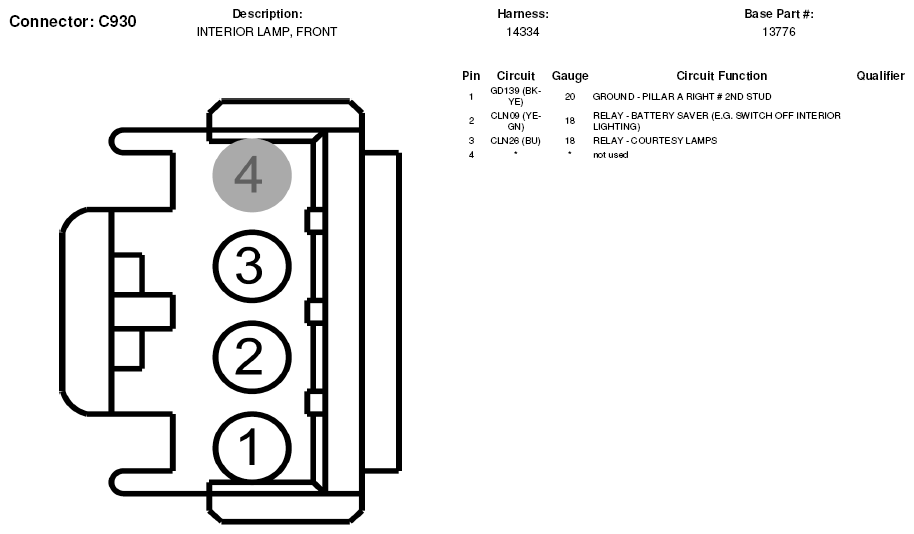

Fig 2: Front Interior Lamp Connector End View (C930)

G05602576
