Knock Sensor Connector
Knock Sensor Connector

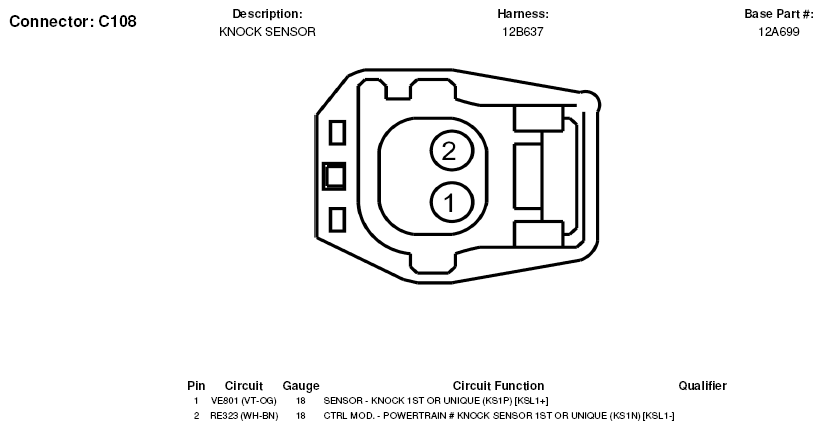

Fig 1: Knock Sensor Connector End View (C108)

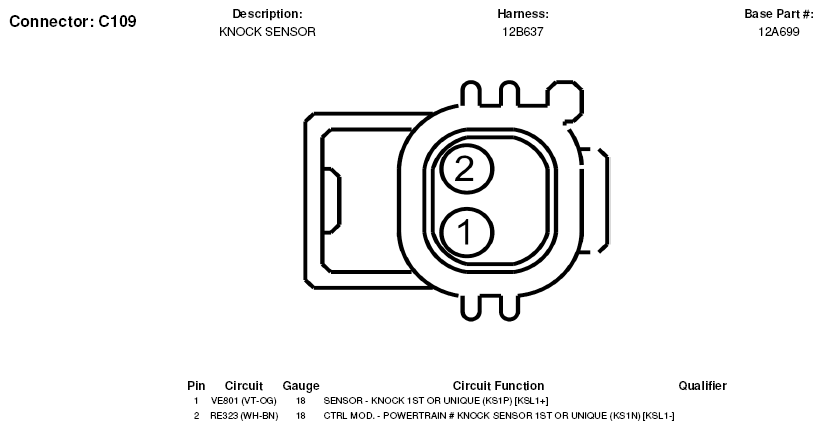

Fig 2: Knock Sensor Connector End View (C109)
