Left Front Side Lamp Connector
Left Front Side Lamp Connector

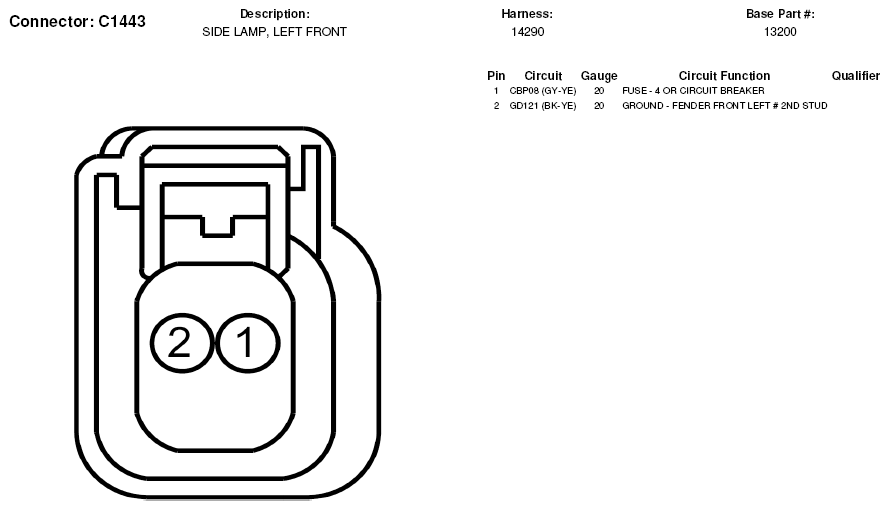

Fig 1: Left Front Side Lamp Connector End View (C1443)
