Left Side Rail Sensor Connector
Left Side Rail Sensor Connector

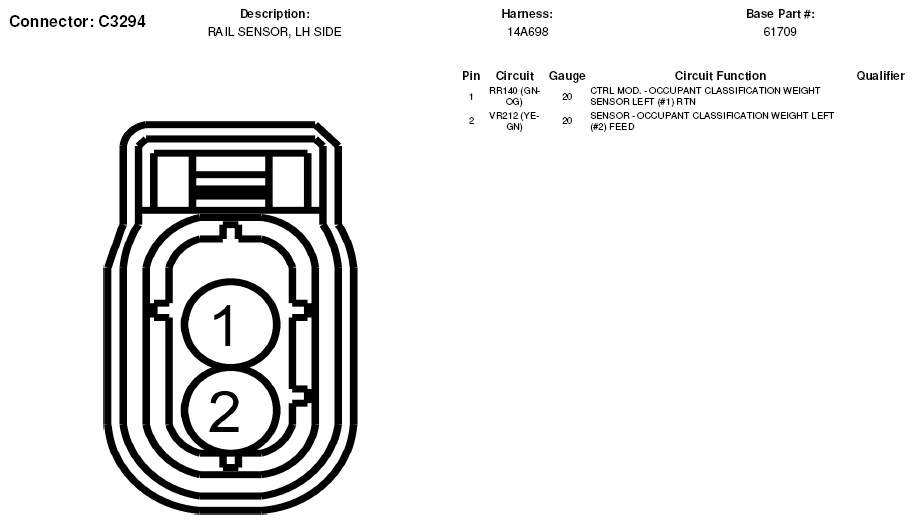

Fig 1: Left Side Rail Sensor Connector End View (C3294)
