Multimedia Inside Mirror Unit Connector
Multimedia Inside Mirror Unit Connector

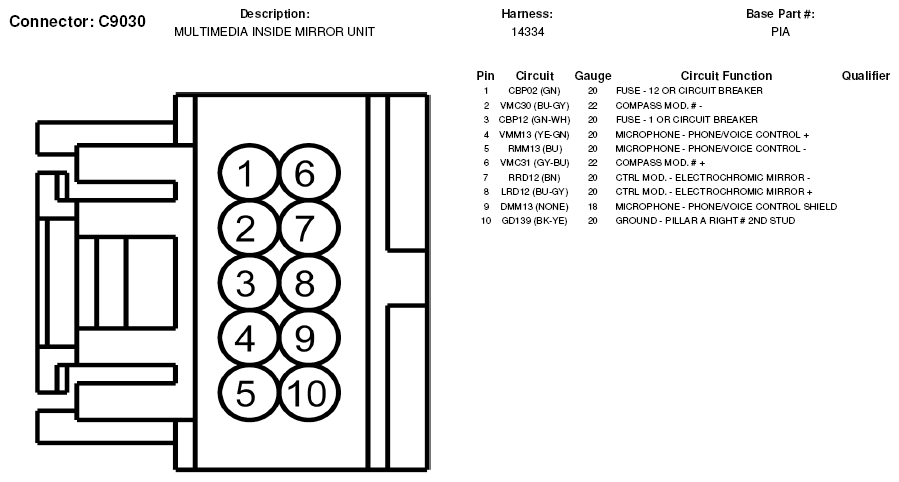

Fig 1: Multimedia Inside Mirror Unit Connector End View (C9030)
