Output Shaft Speed Sensor Connector

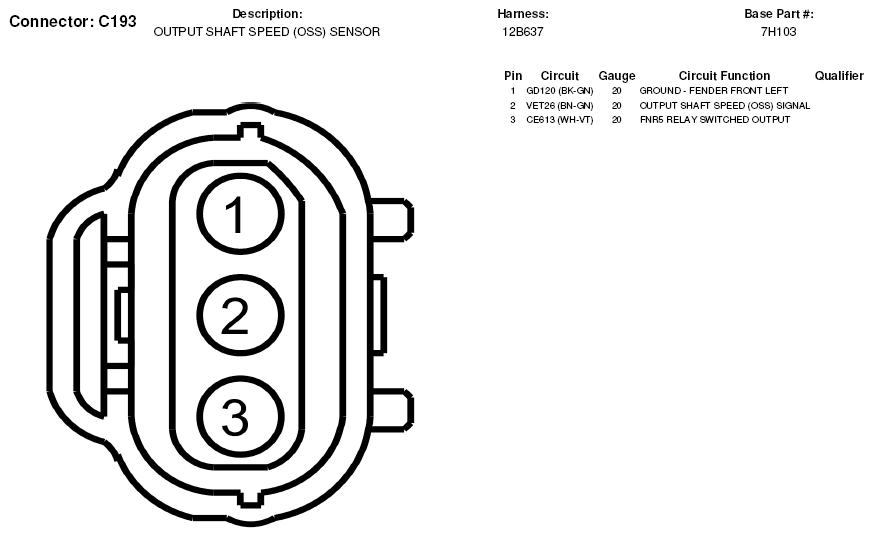

Fig 1: Output Shaft Speed Sensor Connector End View (C193)

G05602420

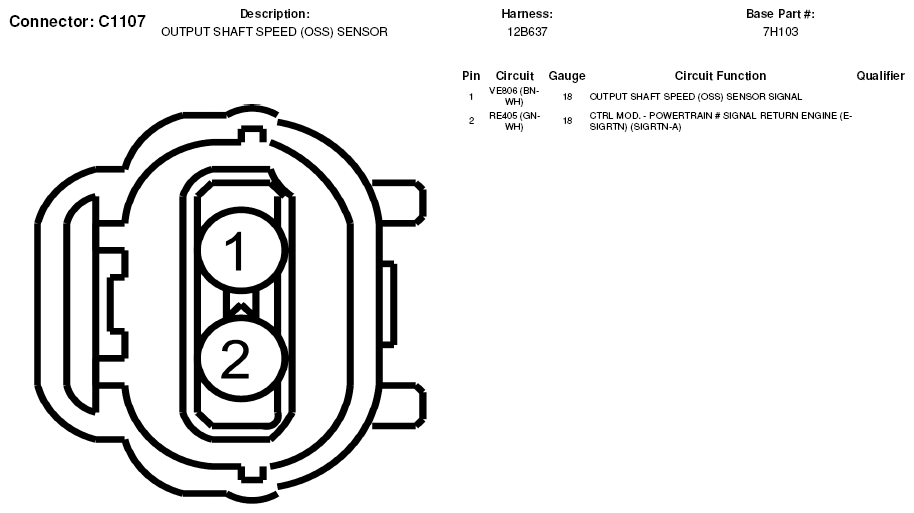

Fig 2: Output Shaft Speed Sensor Connector End View (C1107)

G05602589
