Power Steering Pressure Switch Connector
Power Steering Pressure Switch Connector

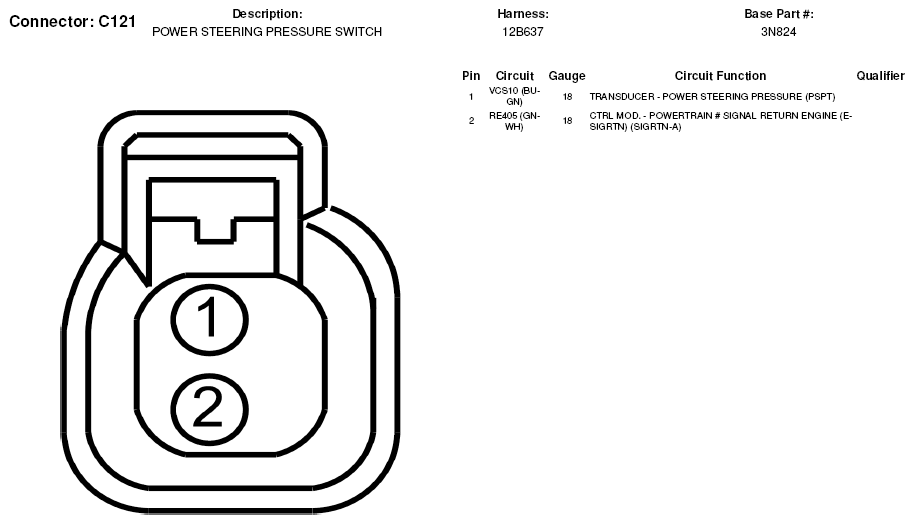

Fig 1: Power Steering Pressure Switch Connector End View (C121)
Fig 2: Power Steering Pressure Switch Connector End View (C1121)
