FixVault
Home
›
Lincoln
›
2008
›
MKZ AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector Views
›
Right Side Rail Sensor Connector
Right Side Rail Sensor Connector

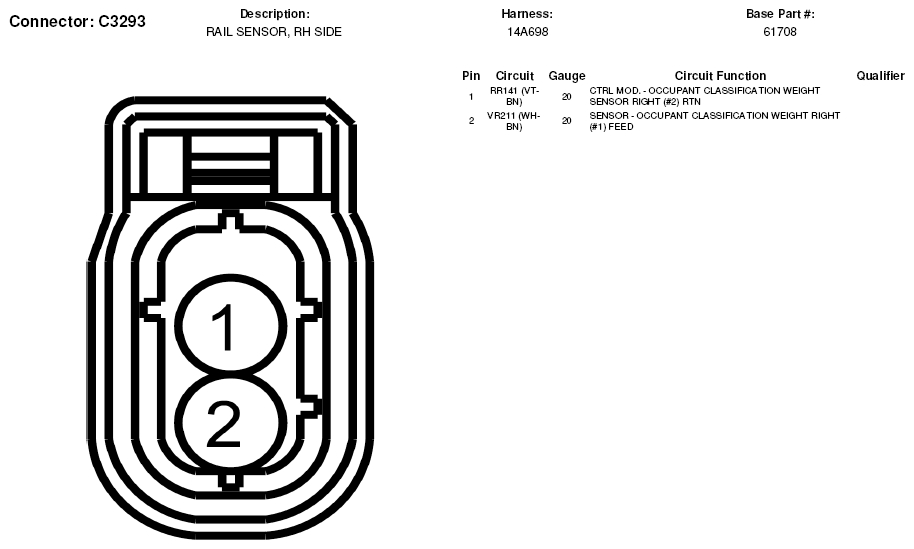

Fig 1: Right Side Rail Sensor Connector End View (C3293)
