Transmission Range Sensor Connector
Transmission Range Sensor Connector

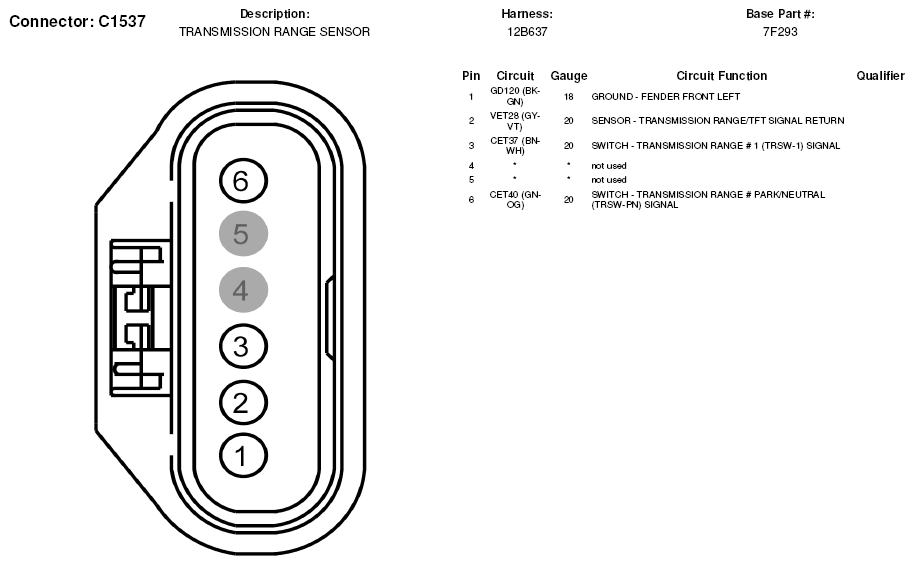

Fig 1: Transmission Range Sensor Connector End View (C1537)
