Intermediate Shaft Speed Sensor Connector
Intermediate Shaft Speed Sensor Connector

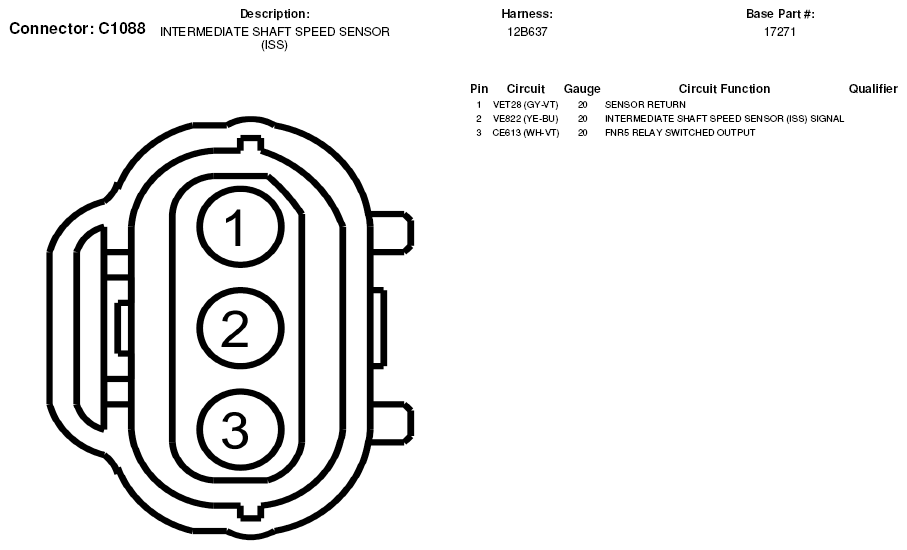

Fig 1: Intermediate Shaft Speed Sensor Connector End View (C1088)
