Left Front Power Window Motor Connector

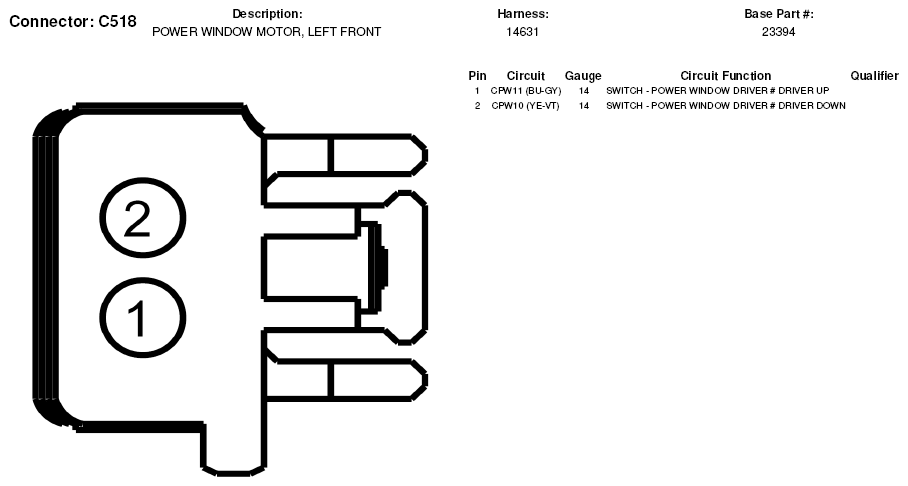

Fig 1: Left Front Power Window Motor Connector End View (C518)

G05602530

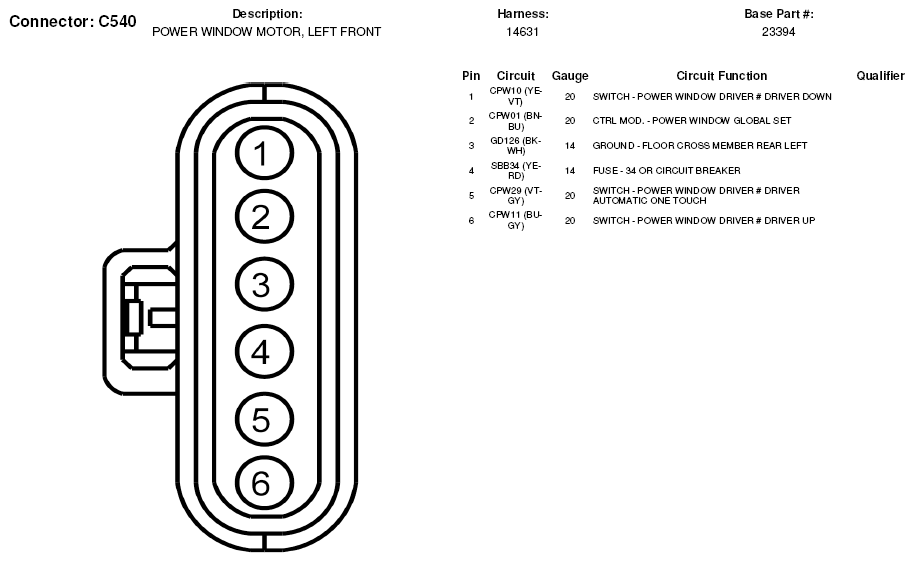

Fig 2: Left Front Power Window Motor Connector End View (C540)

G05602540
