Main Control Valve Body: Installation

    NOTE: When installing the main control valve body, place the wire harness in the open space of the separate plate, being careful not to pinch the harness. Damage to the harness will occur.
  1. Connect the manual valve link and position the main control valve body in place.
    2. Fig 1: Locating Manual Control Lever
    GF0017781Courtesy of FORD MOTOR CO.
  2. Loosely install the 6 main control valve body bolts in the sequence shown.
    3. Fig 2: Identifying Main Control Valve Body Bolts Sequence
    GF0017780Courtesy of FORD MOTOR CO.
  3. Install the suction cover gasket, cover and loosely install the 2 bolts.
    4. Fig 3: Identifying Suction Cover, Gasket & Bolts
    GF0017779Courtesy of FORD MOTOR CO.
  4. Tighten the 8 bolts to 10 Nm (89 lb-in) in the sequence shown.
    5. Fig 4: Identifying Bolts Tightening Sequence
    GF0017782Courtesy of FORD MOTOR CO.
  5. Lubricate the O-ring and install the TFT sensor.
    • Tighten to 10 Nm (89 lb-in).
    6. Fig 5: Identifying Transmission Fluid Temperature Sensor, Bolt & Lock Plate
    GF0017778Courtesy of FORD MOTOR CO.
  6. Connect the 2 speed sensor wires.

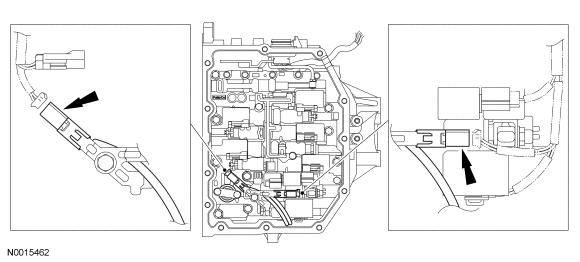

    7. Fig 6: Locating Speed Sensor Wires
    GF0017777Courtesy of FORD MOTOR CO.
  7. Connect the wire harness to the solenoids.
    1. Install the wire harness into the clamps.
    2. Connect the 8 solenoid connectors and the 2 speed sensor connectors.

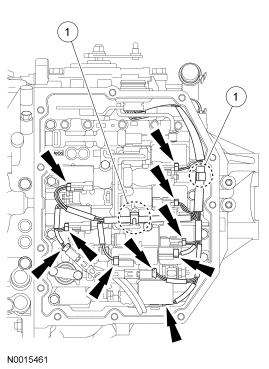

    8. Fig 7: Locating Solenoid Connectors & Speed Sensor Connectors
    GF0017776Courtesy of FORD MOTOR CO.
  8. Install a bead of sealer to the fluid pan.
    9. Fig 8: Locating Fluid Pan Sealer
    GF0017775Courtesy of FORD MOTOR CO.
  9. Using new pan bolts, install the fluid pan.
    • Tighten to 13 Nm (115 lb-in).
    10. Fig 9: Locating Transmission Fluid Pan Bolts
    GF0017774Courtesy of FORD MOTOR CO.
    NOTE: Lubricate the new O-rings with clean automatic transmission fluid and install them onto the transmission fluid cooler tubes.
  10. Connect the transmission fluid cooler tubes to the transaxle.
    • Tighten to 10 Nm (89 lb-in).
    11. Fig 10: Locating Transmission Fluid Cooler Tube Bolts
    GF0029624Courtesy of FORD MOTOR CO.
  11. Install the transmission fluid drain plug.
    • Tighten to 47 Nm (35 lb-ft).
    12. Fig 11: Locating Transmission Fluid Drain Plug
    G03991678Courtesy of FORD MOTOR CO.
  12. Remove the transmission fluid fill plug.
    13. Fig 12: Locating Fluid Fill Plug
    GF0029620Courtesy of FORD MOTOR CO.
  13. Fill the transaxle with approximately 4.7L (5 qt) of clean transmission fluid.
  14. Install the transmission fluid fill plug.
    • Tighten to 39 Nm (29 lb-ft).
    15. Fig 13: Locating Fluid Fill Plug
    GF0029620Courtesy of FORD MOTOR CO.
  15. With the transaxle in PARK, the vehicle on a level surface, the engine at idle (680-780 rpm) and foot pressed on the brake, move the selector lever through each gear and allow engagement of each gear. Place the selector lever back in the PARK position.
  16. Wipe the transmission fluid level indicator cap and remove the transmission fluid level indicator.
  17. Wipe the transmission fluid level indicator with a clean cloth.
    18. NOTE: In order to get an accurate transmission fluid level reading, the vehicle should be on a level surface. Idle the engine to reach the normal operating temperature. Using the scan tool, verify that the transaxle is at normal operating temperature 60°C-70°C (140°F-158°F), prior to adjusting the transmission fluid level.
  18. If transmission fluid needs to be added, add transmission fluid in 0.25L (1/2 pt) increments through the transmission fluid fill plug located on the top of the transaxle near the transmission fluid level indicator. Do not overfill the transmission fluid. Install the transmission fluid level indicator back in the transmission fluid filler tube until it is fully seated, then remove the transmission fluid level indicator. The transmission fluid level should be at the upper most mark on the transmission fluid level indicator. Only fill to the upper most mark on the transmission fluid level indicator. Do not overfill. Damage to the transaxle will occur.
    19. Fig 14: Locating Fluid Level Indicator
    GF0029621Courtesy of FORD MOTOR CO.
    NOTE: The correct transmission fluid level at normal operating temperature of 60°C-70°C (140°F-158°F) is between the top 2 marks on the transmission fluid level indicator.
  19. Fill the transaxle to the correct transmission fluid level.
    20. Fig 15: Locating Temperature Marks On Fluid Level Indicator
    GF0029622Courtesy of FORD MOTOR CO.
    NOTE: The correct transmission fluid level at cool operating temperature of 15°C-25°C (59°F-77°F), is at the bottom mark on the transmission fluid level indicator.
  20. If the TFT is low, fill the transaxle with transmission fluid to the cold range on the transmission fluid level indicator. Recheck the transmission fluid level when the transaxle has reached the normal operating temperature.
    21. Fig 16: Locating Bottom Mark On Fluid Level Indicator
    GF0029623Courtesy of FORD MOTOR CO.
