Audio Control Module Connector
›
Audio Control Module Connector End View - C290A
Audio Control Module Connector End View - C290A

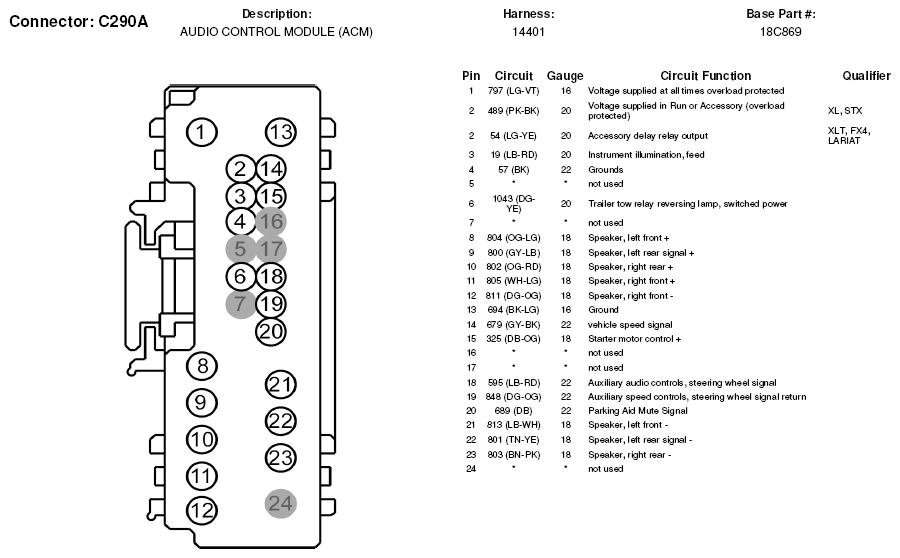

Fig 1: Audio Control Module Connector End View (C290A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
