Audio Control Module Connector
›
Audio Control Module Connector End View - C290B
Audio Control Module Connector End View - C290B

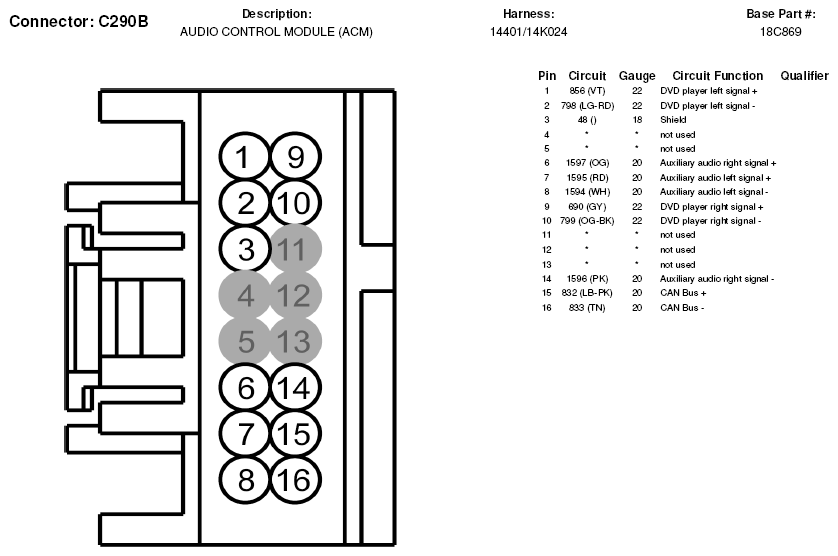

Fig 1: Audio Control Module Connector End View (C290B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
