Accelerator Pedal - Adjustable: Notes

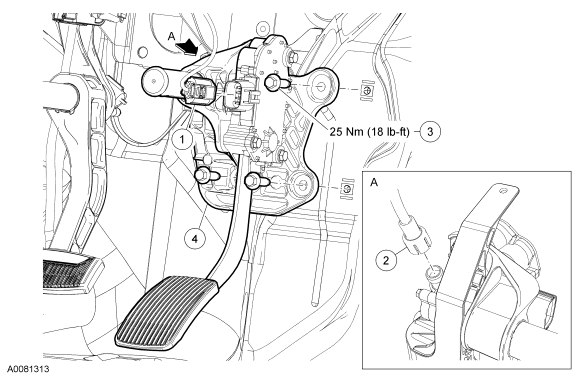

Fig 1: View Of Accelerator Pedal Adjustable With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Accelerator pedal electrical connector (part of 12A581)
2	G4250	Accelerator pedal assembly drive cable
3	W709356	Accelerator pedal assembly bolt (3 required)
4	G4211	Accelerator pedal assembly
