Accelerator Pedal - Fixed: Notes

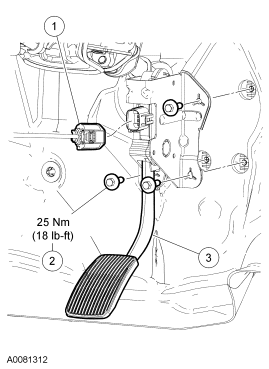

Fig 1: View Of Accelerator Pedal Fixed With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Accelerator pedal electrical connector (part of 12A581)
2	W709356	Accelerator pedal assembly bolt (3 required)
3	9F836	Accelerator pedal assembly
