Left Running Board Motor Connector

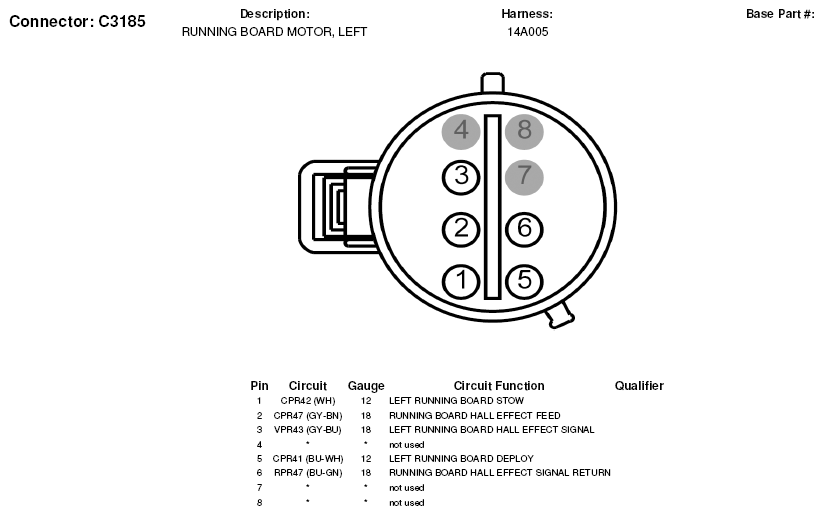

Fig 1: Left Running Board Motor Connector End View (C3185)
G05600080
